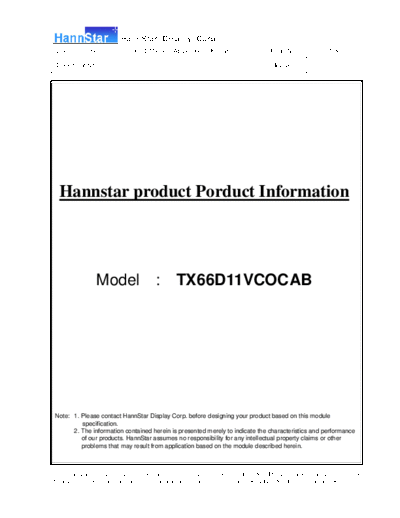

Image preview - the first page of the document
![Panel_HITACHI_TX66D11VC0CAB_0_[DS]](/pics/5c8edc9d3aa9c.gif)
>> Download Panel_HITACHI_TX66D11VC0CAB_0_[DS] documenatation <<
Text preview - extract from the document
Ha n n Sta r Di s p l a y C o r p .
Document Title TX66D11VCOCAB product Information Page No. 1/30
Document No. Revision 1.0
Hannstar product Porduct Information
Model : TX66D11VCOCAB
Note: 1. Please contact HannStar Display Corp. before designing your product based on this module
specification.
2. The information contained herein is presented merely to indicate the characteristics and performance
of our products. HannStar assumes no responsibility for any intellectual property claims or other
problems that may result from application based on the module described herein.
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be
disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
Ha n n Sta r Di s p l a y C o r p .
Document Title TX66D11VCOCAB product Information Page No. 2/30
Document No. Revision 1.0
Contents
1.0 General descriptions ........................................ 4p.
2.0 Absolute maximum ratings ................................ 6p.
3.0 Optical characteristics ...................................... 8p.
4.0 Block diagram ................................................ 14p.
5.0 I/O Connection Pin assignment ............................. 18p.
6.0 Electrical Characteristics ................................... 22p.
7.0 Outline dimension ........................................... 28p.
8.0 Lot Mark ........................................................ 30p.
9.0 Package Specification ....................................... 32p.
10.0 General precaution ......................................... 33p.
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be
disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
Ha n n Sta r Di s p l a y C o r p .
Document Title TX66D11VCOCAB product Information Page No. 3/30
Document No. Revision 1.0
1.0 GENERAL DESCRIPTIONS
1.1 Introduction
HannStar Display model TX66D11VCOCAB is a color active matrix thin film transistor
(TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
This model is composed of a TFT LCD panel, the voltage reference, common voltage,
DC-DC converter, column, and row driver circuit. This TFT LCD has a 26-inch diagonally
measured active display area with WXGA resolution (768 vertical by 1366 horizontal pixel
array).
1.2 Features
26" WXGA TFT LCD panel
14 CCFLs Backlight system
Supported WXGA (V:768 lines, H:1366 pixels) resolution
With LCD Timing Controller
With inverter
1.3 Applications
Desktop monitors
Display terminals for AV applications
Monitors for industrial applications
1.4 General information
Item Specification Unit
Outline dimension 646 j373 j50.5 (typ.) mm
Display area 581.77(H) x 329.71(V) (26.0" diagonal) mm
Number of Pixel 1366(H) x 768(V) Pixels
Pixel pitch 0.4215(H) x 0.4215(V) mm
Pixel arrangement BGR Vertical stripe
Display color 16.7 million (8 bit ) colors
Display mode Normally Black
Surface treatment Antiglare, Hard-Coating (3H)
Weight(With Inverter) 6000(g)(Typ.) g
Back-light 14-CCFLs
Input signal 1-ch LVDS
Logic system (TBD) W
Power consumption
B/L system (TBD) W
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be
disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
Ha n n Sta r Di s p l a y C o r p .
Document Title TX66D11VCOCAB product Information Page No. 4/30
Document No. Revision 1.0
1.5 Mechanical Information
Item Min. Typ. Max. Unit
Horizontal(H) 645 646 647 mm
Module Size Vertical(V) 372.2 373 373.8 mm
Depth(D) 50.7 51.5 52.3 mm
Weight (with inverter) -- 6000 -- g
Torque of customer screw hole 2.0 2.2 2,4 Kgf*Cm
The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be
disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
Ha n n Sta r Di s p l a y C o r p .
Document Title TX66D11VCOCAB product Information Page No. 5/30
Document No. Revision 1.0
2.0ABSOLUTE MAXIMUM RATINGS
2.0 Absolute Rating of Environment
Item Symbol Min. Max. Unit Note
o
Storage temperature TSTG -20 60 C (1)
o
Operating temperature TOPR 0 50 C (1)
Vibration(non-operating) VNOP -- 2.0 G (2)
Shock(non-operating) SNOP -- 50 G (3)
Storage humidity HSTG 10 90 %RH (4)
Operating humidity HOP 10 80 %RH (4)
Low pressure(operating) PLOP 697 -- HPa (5)
Low pressure(non-operating) PLNOP 116 -- HPa (6)
Note (1)Storage /Operating temperature
Humidity (%)
100
90
80
Operating Range
60
40
Storage Range
20
10
0
-40 -20 0 20 40 50 60 65
o
Temperature ( C)
Temperature and humidity should be applied glass surface of a TFT module,
not the system installed with a module.
(2) 5-500-5Hz sine wave, X,Y,Z each directions, 30 min/cycle.
