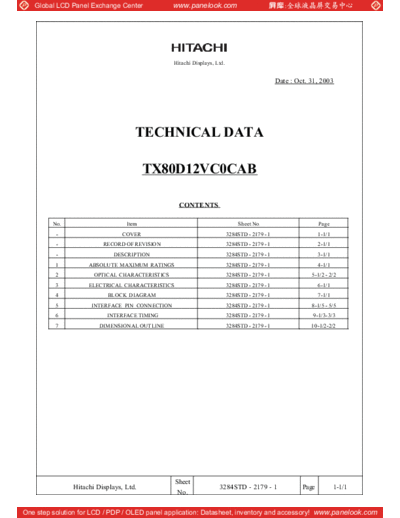

Image preview - the first page of the document
![Panel_HITACHI_TX80D12VC0CAB_0_[DS]](/pics/5c8edca0c2a73.gif)
>> Download Panel_HITACHI_TX80D12VC0CAB_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Hitachi Displays, Ltd.
Date : Oct. 31, 2003
TECHNICAL DATA
TX80D12VC0CAB
CONTENTS
No. Item Sheet No. Page
- COVER 3284STD - 2179 - 1 1-1/1
- RECORD OF REVISION 3284STD - 2179 - 1 2-1/1
- DESCRIPTION 3284STD - 2179 - 1 3-1/1
1 ABSOLUTE MAXIMUM RATINGS 3284STD - 2179 - 1 4-1/1
2 OPTICAL CHARACTERISTICS 3284STD - 2179 - 1 5-1/2 - 2/2
3 ELECTRICAL CHARACTERISTICS 3284STD - 2179 - 1 6-1/1
4 BLOCK DIAGRAM 3284STD - 2179 - 1 7-1/1
5 INTERFACE PIN CONNECTION 3284STD - 2179 - 1 8-1/5 - 5/5
6 INTERFACE TIMING 3284STD - 2179 - 1 9-1/3-3/3
7 DIMENSIONAL OUTLINE 3284STD - 2179 - 1 10-1/2-2/2
Sheet
Hitachi Displays, Ltd. 3284STD - 2179 - 1 Page 1-1/1
No.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
RECORD OF REVISION
The upper section : Before revision
Date The lower section : After revision Summary
Sheet No. Page
Sheet
Hitachi Displays, Ltd. Date Oct .31,2003 3284STD - 2179 - 1 Page 2-1/1
No.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
DESCRIPTION
The following specifications are applied to the following Super-TFT module.
Note : Inverter for back light unit is not built in this module.
Product Name : TX80D12VC0CAB
General Specifications
Sheet
Hitachi Displays, Ltd. Date Oct .31,2003 3284STD - 2179 - 1 Page 3-1/1
No.
1. ABSOLUTE MAXIMUM RATINGS
ITEM SYMBOL Min. Max. Unit Note
Sheet
Hitachi Displays, Ltd. Date Oct .31,2003 3284STD - 2179 - 1 Page 4-1/1
No.
ITEM SYMBOL CONDITION Min. Typ. Max. UNIT NOTE
Contrast Ratio CR 350 500 - - 2)
Response Rise ton - 15 ms 3) , CTL:High
Time
Sheet
Hitachi Displays, Ltd. Date Oct .31,2003 3284STD - 2179 - 1 Page 5-1/2
No.
Note 1) Definition of Viewing Angle
Sheet
Hitachi Displays, Ltd. Date Oct .31,2003 3284STD - 2179 - 1 Page 5-2/2
No.
ITEM SYMBOL Min. Typ. Max. Unit Note
Power Supply Voltage
Sheet
Hitachi Displays, Ltd. Date Oct .31,2003 3284STD - 2179 - 1 Page 6-1/1
No.
4. BLOCK DIAGRAM
(1) Super-TFT Module
(2) Back light unit
Sheet
Hitachi Displays, Ltd. Date Oct .31,2003 3284STD - 2179 - 1 Page 7-1/1
No.
5. INTERFACE PIN ASSIGNMENT
5. 1 TFT-LCD MODULE
CN1 : JAE FI-SEB20P-HF13
(Matching connector : JAE FI-SE20M or equivalent)
Pin No. Symbol Description Note
1 VDD Power Supply (typ.+12V) 1)
2 VDD
3 VSS GND (0V) 2)
4 VSS
5 Rx0- Pixel Data 3)
6 Rx0+
7 VSS GND (0V) 2)
8 Rx1- Pixel Data 3)
9 Rx1+
10 VSS GND (0V) 2)
11 Rx2- Pixel Data 3)
12 Rx2+
13 VSS GND (0V) 2)
14 CLK- Pixel Clock 3)
15 CLK+
16 VSS GND (0V) 2)
17 Rx3- Pixel Data 3)
18 Rx3+
19 VSS GND (0V) 2)
20 CTL Low:A line trace ON , High:A line trace OFF 4)
Notes
Sheet
Hitachi Displays, Ltd. Date Oct .31,2003 3284STD - 2179 - 1 Page 8-1/5
No.
BLOCK DIAGRAM OF INTERFACE
LVDS Transmitter LVDS Receiver
Sheet
Hitachi Displays, Ltd. Date Oct .31,2003 3284STD - 2179 - 1 Page 8-2/5
No.
LVDS INTERFACE
Notes 1) RSVD(reserved) pins on the transmitter shall be "H" or "L".
Sheet
Hitachi Displays, Ltd. Date Oct .31,2003 3284STD - 2179 - 1 Page 8-3/5
No.
CORRESPONDENCE BETWEEN INPUT DATA AND DISPLAY IMAGE
Sheet
Hitachi Displays, Ltd. Date Oct .31,2003 3284STD - 2179 - 1 Page 8-4/5
No.
RELATIONSHIP BETWEEN DISPLAY COLORS AND INPUT SIGNALS
Sheet
Hitachi Displays, Ltd. Date Oct .31,2003 3284STD - 2179 - 1 Page 8-5/5
No.
6. INTERFACE TIMING
6.1 TIMING CHART
Notes
Sheet
Hitachi Displays, Ltd. Date Oct .31,2003 3284STD - 2179 - 1 Page 9-1/3
No.
6.2 INTERFACE TIMING SPECIFICATIONS
Sheet
Hitachi Displays, Ltd. Date Oct .31,2003 3284STD - 2179 - 1 Page 9-2/3
No.
6.3 TIMING BETWEEN INTERFACE SIGNALS AND POWER SUPPLY
12V
10V 10V
1V 1V
VDD 0V
TPR TCR A line trace OFF TDF TIN
High
CTL Low
TDR
Valid
VI
TBR TBCF TBCR TBCF TBCR TBF
ON
BL OFF
Sheet
Hitachi Displays, Ltd. Date Oct .31,2003 3284STD - 2179 - 1 Page 9-3/3
