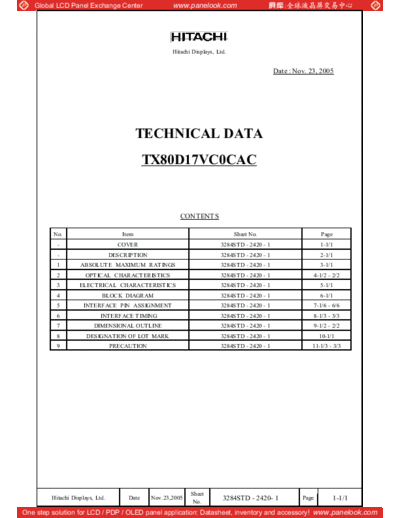

Image preview - the first page of the document
![Panel_HITACHI_TX80D17VC0CAC_0_[DS]](/pics/5c8edca72db91.gif)
>> Download Panel_HITACHI_TX80D17VC0CAC_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
Hitachi Displays, Ltd.
Date : Nov. 23, 2005
TECHNICAL DATA
TX80D17VC0CAC
CONTENTS
No. Item Sheet No. Page
- COVER 3284STD - 2420 - 1 1-1/1
- DESCRIPTION 3284STD - 2420 - 1 2-1/1
1 ABSOLUTE MAXIMUM RATINGS 3284STD - 2420 - 1 3-1/1
2 OPTICAL CHARACTERISTICS 3284STD - 2420 - 1 4-1/2 - 2/2
3 ELECTRICAL CHARACTERISTICS 3284STD - 2420 - 1 5-1/1
4 BLOCK DIAGRAM 3284STD - 2420 - 1 6-1/1
5 INTERFACE PIN ASSIGNMENT 3284STD - 2420 - 1 7-1/6 - 6/6
6 INTERFACE TIMING 3284STD - 2420 - 1 8-1/3 - 3/3
7 DIMENSIONAL OUTLINE 3284STD - 2420 - 1 9-1/2 - 2/2
8 DESIGNATION OF LOT MARK 3284STD - 2420 - 1 10-1/1
9 PRECAUTION 3284STD - 2420 - 1 11-1/3 - 3/3
Sheet
Hitachi Displays, Ltd. Date Nov.23,2005 3284STD - 2420- 1 Page 1-1/1
No.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
DESCRIPTION
The following specifications are applied to the following Super-TFT module.
Note : Inverter for back light unit is built in this module.
Product Name : TX80D17VC0CAC
General Specifications
Effective Display Area : (H)697.6845 (V)392.256 (mm)
Number of Pixels : (H)1,366 (V)768 (pixels)
Pixel Pitch : (H)0.51075 (V)0.51075 (mm)
Color Pixel Arrangement : B+G+R Vertical Stripe
Display M ode : Transmissive M ode
Normally Black M ode
Top Polarizer Type : Anti-Glare
Number of Colors : 16,777,216 (colors)
Viewing Angle Range : Super Wide Version
(Horizontal & Vertical : 178◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
