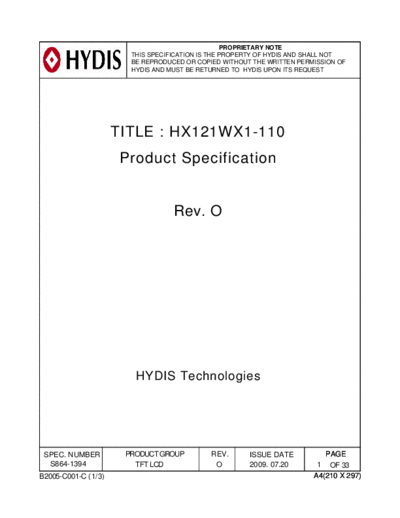

Image preview - the first page of the document
![Panel_HYDIS_HX121WX1-110_0_[DS]](/pics/5c8edd8448178.gif)
>> Download Panel_HYDIS_HX121WX1-110_0_[DS] documenatation <<
Text preview - extract from the document
PROPRIETARY NOTE
THIS SPECIFICATION IS THE PROPERTY OF HYDIS AND SHALL NOT
BE REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF
HYDIS AND MUST BE RETURNED TO HYDIS UPON ITS REQUEST
TITLE : HX121WX1-110
Product Specification
Rev. O
HYDIS Technologies
SPEC. NUMBER PRODUCT GROUP REV. ISSUE DATE PAGE
S864-1394 TFT LCD O 2009. 07.20 1 OF 33
B2005-C001-C (1/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT LCD PRODUCT O 2009. 07.20
REVISION HISTORY
REV. ECN NO. DESCRIPTION OF CHANGES DATE PREPARED
O Initial Release `09. 07.20 Y. J. Shin
SPEC. NUMBER SPEC TITLE PAGE
S864-1394 HX121WX1-110 Product Specification 2 OF 33
B2005-C001-D (2/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT LCD PRODUCT O 2009. 07.20
Contents
No Item Page
1.0 General Description 4
2.0 Absolute Maximum Ratings 6
3.0 Electrical Specifications 7
4.0 Optical Specifications 9
5.0 Interface Connections 14
6.0 Signal Timing Specifications 17
7.0 Signal Timing Waveforms 17
8.0 Input Signals, Basic Display Colors & Gray Scale of Colors 19
9.0 Power Sequence 20
10.0 Mechanical Characteristics 21
11.0 Mechanical Drawing 22
12.0 Reliability Test 25
13.0 Handling & Cautions 25
14.0 Labels 27
15.0 Packing Information 29
16.0 EDID Data 30
SPEC. NUMBER SPEC TITLE PAGE
S864-1394 HX121WX1-110 Product Specification 3 OF 33
B2005-C001-D (3/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT LCD PRODUCT O 2009. 07.20
1.0 GENERAL DESCRIPTION
1.1 Introduction
HX121WX1-110 is a color active matrix TFT LCD module using amorphous silicon TFT's
(Thin Film Transistors) as an active switching devices. This module has a 12.1 inch
diagonally measured active area with WXGA resolutions (1280 horizontal by 800 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical Stripe and this module can display 262,144 colors. The TFT-LCD panel used for this
module is a low reflection and higher color type.
Source Driver
LVDS
Input LVDS Rx
Signal +
T/CON
TFT LCD Panel
Gate Driver
Connector (CN
