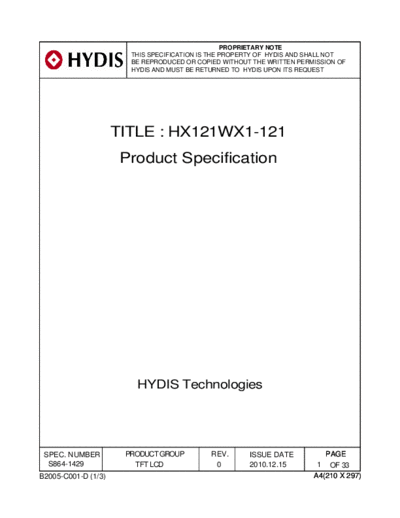

Image preview - the first page of the document
![Panel_HYDIS_HX121WX1-121_0_[DS]](/pics/5c8edd8a33d39.gif)
>> Download Panel_HYDIS_HX121WX1-121_0_[DS] documenatation <<
Text preview - extract from the document
PROPRIETARY NOTE
THIS SPECIFICATION IS THE PROPERTY OF HYDIS AND SHALL NOT
BE REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF
HYDIS AND MUST BE RETURNED TO HYDIS UPON ITS REQUEST
TITLE : HX121WX1-121
Product Specification
HYDIS Technologies
SPEC. NUMBER PRODUCT GROUP REV. ISSUE DATE PAGE
S864-1429 TFT LCD 0 2010.12.15 1 OF 33
B2005-C001-D (1/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT LCD PRODUCT 0 2010. 12.15
REVISION HISTORY
REV. ECN NO. DESCRIPTION OF CHANGES DATE PREPARED
0 Initial Release `10.12.15 J. T. LEE
SPEC. NUMBER SPEC TITLE PAGE
S864-1429 HX121WX1-121 Product Specification 2 OF 33
B2005-C001-D (2/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT LCD PRODUCT 0 2010. 12.15
Contents
No Item Page
1.0 General Description 4
2.0 Absolute Maximum Ratings 6
3.0 Electrical Specifications 7
4.0 Optical Specifications 9
5.0 Interface Connections 14
6.0 Signal Timing Specifications 16
7.0 Signal Timing Waveforms 16
8.0 Input Signals, Basic Display Colors & Gray Scale of Colors 18
9.0 Power Sequence 19
10.0 Mechanical Characteristics 20
11.0 Mechanical Drawing 21
12.0 Reliability Test 24
13.0 Handling & Cautions 24
14.0 Labels 26
15.0 Packing Information 28
16.0 EDID 30
SPEC. NUMBER SPEC TITLE PAGE
S864-1429 HX121WX1-121 Product Specification 3 OF 33
B2005-C001-D (3/3) A4(210 X 297)
PRODUCT GROUP REV ISSUE DATE
TFT LCD PRODUCT 0 2010. 12.15
1.0 GENERAL DESCRIPTION
1.1 Introduction
HX121WX1-121 is a color active matrix TFT LCD module using amorphous silicon TFT's
(Thin Film Transistors) as an active switching devices. This module has a 12.1 inch
diagonally measured active area with WXGA resolutions (1280 horizontal by 800 vertical
pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in
vertical Stripe and this module can display 262,144 colors. The TFT-LCD panel used for this
module is a low reflection and higher color type.
Source Driver
eDP
Input eDP Rx
Signal +
T/CON
TFT LCD Panel
Gate Driver
Connector (CN
