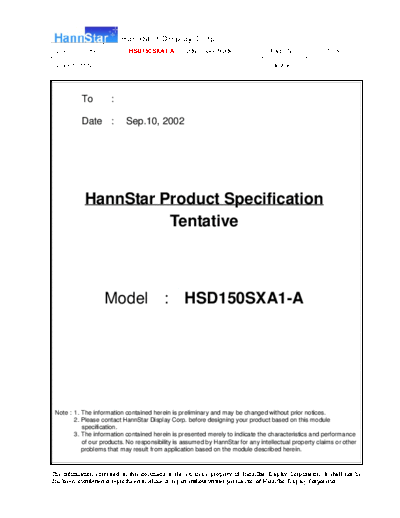

Image preview - the first page of the document



>> Download Panel_HannStar_HSD150SXA1-A_1_[DS] documenatation <<

Text preview - extract from the document

                          H a n n St a r D i s p l a y C o r p .
 Document Title              HSD150SXA1-A Tentative Specification                 Page No.             1 / 30

 Document No.                                                                      Revision              1.0




           To         :

           Date :          Sep.10, 2002




            HannStar Product Specification
                      Tentative



                   Model : HSD150SXA1-A




 Note : 1. The information contained herein is preliminary and may be changed without prior notices.
        2. Please contact HannStar Display Corp. before designing your product based on this module
           specification.
        3. The information contained herein is presented merely to indicate the characteristics and performance
           of our products. No responsibility is assumed by HannStar for any intellectual property claims or other
           problems that may result from application based on the module described herein.



The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be
disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
                          H a n n St a r D i s p l a y C o r p .
 Document Title              HSD150SXA1-A Tentative Specification                 Page No.             2 / 30

 Document No.                                                                      Revision              1.0




                                           Record of Revisions

 Rev.    Updated No.          Date                                 Description of change

  1.0          ---       Sep.10, 2002        Tentative specification for HSD150SXA1-A was first issued.




The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be
disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
                          H a n n St a r D i s p l a y C o r p .
 Document Title              HSD150SXA1-A Tentative Specification                      Page No.           3 / 30

 Document No.                                                                           Revision           1.0




                                                   Contents

             1.0      General descriptions         ........................................        p.4

             2.0      Absolute maximum ratings             ................................        p.5

             3.0      Optical characteristics        ......................................        p.7

             4.0      Block diagram        ................................................        p.12

             5.0      I/O Connection Pin assignment                .............................   p.15

             6.0      Electrical Characteristics............................................ p.17

             7.0      Outline dimension         ...........................................        p.26

             8.0      Lot Mark      ........................................................       p.28

             9.0      General precaution         .........................................         p.29




The information contained in this document is the exclusive property of HannStar Display Corporation. It shall not be
disclosed, distributed or reproduced in whole or in part without written permission of HannStar Display Corporation.
                           H a n n St a r D i s p l a y C o r p .
 Document Title               HSD150SXA1-A Tentative Specification                Page No.             4 / 30

 Document No.                                                                      Revision              1.0



 1.0 GENERAL DESCRIPTIONS

      1.1 Introduction
            HannStar Display model HSD150SXA1-A is a color active matrix thin film transistor
         (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device.
         This model is composed of a TFT LCD panel, the voltage reference, common voltage,
         DC-DC converter, column, and row driver circuit. This TFT LCD has a 15-inch diagonally
         measured active display area with XGA resolution (768 vertical by 1024 horizontal pixel
         array).
      1.2 Features
            15" XGA TFT LCD panel
            2 CCFLs Backlight system
            RSDS, 1 pixel/clock
            Supported XGA (V:768 lines, H:1024 pixels) resolution
            Supported to 75Hz refresh rate
            Without LCD Timing Controller
      1.3 General information
                     Item                              Specification                       Unit
            Outline dimension             321.0
