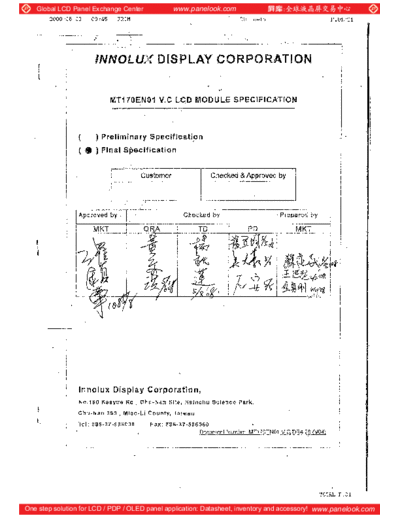

Image preview - the first page of the document

>> Download Panel_INNOLUX_MT170EN01_V-C_0_[DS] documenatation <<

Text preview - extract from the document

Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

Version:04

Record of Revision
Version Revise Date Page Content

01 2007-04-25 All First edition to all

02 2007-05-29 15/24 Modify CR from 800:1 to 1000:1

Modify lamp voltage
03 2007-08-23 13/24
Modify lamp life time from 40000Hr to 50000Hr
20/24 Modify Module Label

24/24 Modify two logo on the back of module

Modify the maximum value of the lamp driving frequency from
04 2008-04-15 13/24
80KHz to 60KHz

14/24 Add the lamp Hi-POT test spec and conditions in note 5

24/24 Label place change

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

SPEC NO. M T 1 7 0 E N 0 1 V. C

PAGE 3/24

Contents:
A. General Specification

B. Electrical Specifications

1. Pin assignment

2. Absolute maximum ratings

3. Electrical characteristics

a. Typical operating conditions

b. Display color v.s. input data signals

c. Input signal timing

d. Display position

e. Backlight driving conditions

C. Optical specifications

D. Reliability test items

E. Safety

F. Display quality

G. Handling precaution

H. Label

I. Packing form

J. Mechanical drawings

Appendix

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR
TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

SPEC NO. M T 1 7 0 E N 0 1 V. C

PAGE 4/24

A. General specification

NO. Item Specification Remark

1 Display resolution (pixel) 1280(H) X 1024(V), SXGA resolution

2 Active area (mm) 337.92(H) X 270.336(V)

3 Screen size (inch) 17 inches diagonal

4 Pixel pitch (mm) 0.264(H) X 0.264(V)

5 Color configuration R, G, B vertical stripe

6 Overall dimension (mm) 358.5(W)x296.5(H)x16(D) (typ)

7 Weight (g) 2000 (max)

8 Surface treatment Anti-glare, Haze = 25%, Hard coating (3H)

9 Input color signal 8 bit LVDS

10 Color saturation 72% NTSC

11 Display colors 16.7M colors (6 bit with Hi-FRC)

12 Optimum viewing direction 6 o'clock

13 Backlight 4 CCFL, top & bottom edge side

14 TCO'03 and RoHS TCO'03 and RoHS compliance

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR
TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

SPEC NO. M T 1 7 0 E N 0 1 V. C

PAGE 5/24

B. Electrical specifications
1.Pin assignment
Connector JAE FI-X30SSL-HF or equivalent

Pin No Symbol Description
1 RxO0- LVDS Differential data input Channel 0(-)
2 RxO0+ LVDS Differential data input Channel 0(+)
3 RxO1- LVDS Differential data input Channel 1(-)
4 RxO1+ LVDS Differential data input Channel 1(+)
5 RxO2- LVDS Differential data input Channel 2(-)
6 RxO2+ LVDS Differential data input Channel 2(+)
7 GND Ground
8 RxOC- LVDS Differential Clock input (-)
9 RxOC+ LVDS Differential Clock input (+)
10 RxO3- LVDS Differential data input Channel 3(-)
11 RxO3+ LVDS Differential data input Channel 3(+)
12 RxE0- LVDS Differential data input Channel 0(-)
13 RxE0+ LVDS Differential data input Channel 0(+)
14 GND Ground
15 RxE1- LVDS Differential data input Channel 1(-)
16 RxE1+ LVDS Differential data input Channel 1(+)
17 GND Ground
18 RxE2- LVDS Differential data input Channel 2(-)
19 RxE2+ LVDS Differential data input Channel 2(+)
20 RxEC- LVDS Differential Clock input (-)
21 RxEC+ LVDS Differential Clock input (+)
22 RxE3- LVDS Differential data input Channel 3(-)
23 RxE3+ LVDS Differential data input Channel 3(+)
24 GND Ground
25 GND Ground
26 GND Ground or Open
27 GND Ground
28 VCC Power supply (+5.0V)
29 VCC Power supply (+5.0V)
30 VCC Power supply (+5.0V)

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR
TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

SPEC NO. M T 1 7 0 E N 0 1 V. C

PAGE 6/24

Rear view of LCM

ALL RIGHTS STRICTLY RESERVED. ANY PORTION OF THIS PRPER SHALL NOT BE REPRODUCED, COPIED, OR
TRANSFORMED TO ANY OTHER FORMS WITHOUT PERMISSION FROM INNOLUX DISPLAY CORPORATION.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

SPEC NO. M T 1 7 0 E N 0 1 V. C

PAGE 7/24

2. Absolute maximum ratings

Values Unit
Parameter Symbol Remark

Min. Max.

Power voltage Vcc - 0.3 6.0 V At 25
