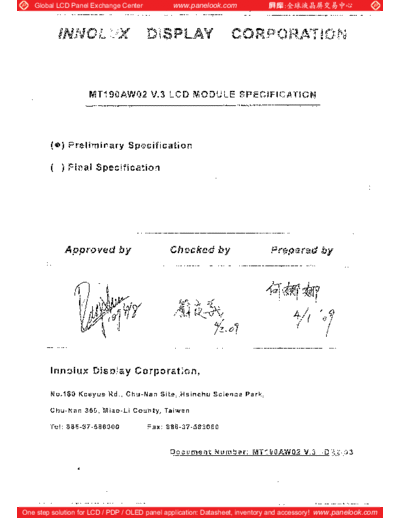

Image preview - the first page of the document

>> Download Panel_INNOLUX_MT190AW02_V-3_0_[DS] documenatation <<

Text preview - extract from the document

Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

SPEC NO. M T 1 9 0 AW 0 2 V. 3

PAGE 3/25

InnoLux copyright
Version: 1.0 All rights reserved,
Copying forbidden.

Record of Revision
Versi Revise Pag Content
1.0 2009/03/11 First edition to all Pre-Spec.

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

SPEC NO. M T 1 9 0 AW 0 2 V. 3

PAGE 4/25

Contents:
A. General Specification

B. Electrical Specifications

1. Pin assignment

2. Absolute maximum ratings

3. Electrical characteristics

a. Typical operating conditions

b. Display color vs. input data signals

c. Input signal timing

d. Display position

e. Backlight Unit

C. Optical specifications

D. Reliability test items

E. Safety

F. Display quality

G. Handling precaution

H. Label

I. Mechanical drawings

Appendix

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

SPEC NO. M T 1 9 0 AW 0 2 V. 3

PAGE 5/25

A. General specification

NO. Item Specification Remark
1 Display resolution (pixel) 1,440(H) X 900(V)
2 Active area (mm) 408.24(H) X 255.15(V)
3 Screen size (inch) 19 inches diagonal
4 Pixel pitch (mm) 0.2835(H) X 0.2835(V)
5 Color configuration R, G, B vertical stripe
6 Overall dimension (mm) 428 (W) X 278 (H) X 16 (D) (Typ.)
7 Weight (g) 2200 (Typ.)
8 Anti-Glare, Haze=25%, Hard Note 1
Surface treatment coating (3H)
9 Input color signal 8 bit LVDS
10 Display colors 16.7M (6 bit with Hi-FRC)
11 Optimum viewing 6 o'clock
direction
12 Backlight Side-light bar (White LED)
13 RoHS & TCO'03 & HF RoHS & TCO'03 & HF compliance Note 2

Note 1: Glare Option available
Note 2 Only Anti-Glare model can meet TCO'03 compliance

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

SPEC NO. M T 1 9 0 AW 0 2 V. 3

PAGE 6/25

B. Electrical specifications
1. Pin assignment
Connector
FOXCONN GS23302-0311S-7F or mechanical interface equivalent connector.

Pin No Symbol Description
Frame VSS Ground
1 RXinO0- -LVDS differential data input, Chan 0-Odd
2 RXinO0+ +LVDS differential data input, Chan 0-Odd
3 RXinO1- -LVDS differential data input, Chan 1-Odd
4 RXinO1+ +LVDS differential data input, Chan 1-Odd
5 RXinO2- -LVDS differential data input, Chan 2-Odd
6 RXinO2+ +LVDS differential data input, Chan 2-Odd
7 VSS Ground
8 RXOC- -LVDS differential Clock input (Odd)
9 RXOC+ +LVDS differential Clock input (Odd)
10 RXinO3- -LVDS differential data input, Chan 3-Odd
11 RXinO3+ +LVDS differential data input, Chan 3-Odd
12 RXinE0- -LVDS differential data input, Chan 0-Even
13 RXinE0+ +LVDS differential data input, Chan 0-Even
14 VSS Ground
15 RXinE1- -LVDS differential data input, Chan 1-Even
16 RXinE1+ +LVDS differential data input, Chan 1-Even
17 VSS Ground
18 RXinE2- -LVDS differential data input, Chan 2-Even
19 RXinE2+ +LVDS differential data input, Chan 2-Even
20 RXEC- -LVDS differential Clock input (Even)
21 RXEC+ +LVDS differential Clock input (Even)
22 RXinE3- -LVDS differential data input, Chan 3-Even
23 RXinE3+ +LVDS differential data input, Chan 3-Even
24 VSS Ground
25 NC No Connection
26 NC No Connection
27 NC No Connection
28 VCC +5.0V power supply
29 VCC +5.0V power supply
30 VCC +5.0V power supply
Frame VSS Ground

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

SPEC NO. M T 1 9 0 AW 0 2 V. 3

PAGE 7/25

Top view of LVDS connector

Rear view of LVDS connector

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

SPEC NO. M T 1 9 0 AW 0 2 V. 3

PAGE 8/25

1.2 Connector
This connector is mounted on the monitor system board for LED light-bar FFC
mating.
Connector Name/Designation Driver Board Connector
Manufacturer Entery INDUSTRIAL CO.,LTD
Mating type part number 7080-Q10N-00R

Top view of LED Light Bar connector

Rear view of LED Light Bar LVDS connector

1.3 FFC Pin Assignment:
Pin No Symbol Description
1 NC No Connection
2 IRLED3 LED current sense for string3
3 IRLED1 LED current sense for string1
4 VLED LED power supply
5 VLED LED power supply
6 VLED LED power supply
7 VLED LED power supply
8 IRLED5 LED current sense for string5
9 IRLED4 LED current sense for string4
10 IRLED2 LED current sense for string2

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

SPEC NO. M T 1 9 0 AW 0 2 V. 3

PAGE 9/25

FFC pin position

Note: FFC specification:

Temperature 80 Voltage=60V Pin No.=10 0.5Pitch PET HF

2. Absolute maximum ratings

Parameter Symbol Values Unit Remark
Min. Typ. Max.
Power voltage Vcc -0.3 - 6.0 V At 25
