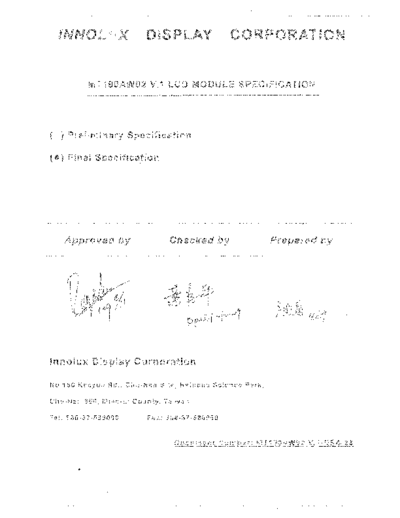

Image preview - the first page of the document
![Panel_INNOLUX_MT190AW02_V-1_0_[DS]](/pics/5c8ede12782f3.gif)
>> Download Panel_INNOLUX_MT190AW02_V-1_0_[DS] documenatation <<
Text preview - extract from the document
InnoLux copyright
Version: 3.0 All rights reserved,
Copying forbidden.
Record of Revision
Version Revise Date P a g e Content
1.0 2008/04/28 All First edition to all Pre-Spec.
2.0 2008/08/11 Update weight from 2500 (max) to 2200 (max)
4
Update overall dimension depth from 16.0 (typ) to 16.5 (max)
7 Update lamp operation current from 8.0 (typ) to 7.5(typ)
12 Update Dclk frequency from 44.5 (typ) to 44.4 (typ)
Upate lamp voltage
From 640 (min) to 611(min)
13
From 654 (typ) to 679 (typ)
From 825 (max) to 747 (max)
Update Color chromaticity
From Rx (typ) 0.640 to 0.645
From Ry (typ) 0.349 to 0.337
15 From Gx (typ) 0.284 to 0.290
From Gy (typ) 0.617 to 0.609
From Bx (typ) 0.142 to 0.146
From By (typ) 0.067 to 0.067
22 Update ME front and back view
3.0 2009/3/17 4 Added Halogen free compliance
SPEC NO. M T 1 9 0 AW 0 2 V. 1
PAGE 3/21
Contents:
A. General Specification
B. Electrical Specifications
1. Pin assignment
2. Absolute maximum ratings
3. Electrical characteristics
a. Typical operating conditions
b. Display color vs. input data signals
c. Input signal timing
d. Display position
e. Backlight driving conditions
C. Optical specifications
D. Reliability test items
E. Safety
F. Display quality
G. Handling precaution
H. Label
I. Mechanical drawings
Appendix
SPEC NO. M T 1 9 0 AW 0 2 V. 1
PAGE 4/21
A. General specification
NO. Item Specification Remark
1 Display resolution (pixel) 1,440(H) X 900(V), WXGA+ resolution
2 Active area (mm) 408.24(H) X 255.15(V)
3 Screen size (inch) 19 inches diagonal
4 Pixel pitch (mm) 0.2835(H) X 0.2835(V)
5 Color configuration R, G, B vertical stripe
6 Overall dimension (mm) 428 (W) X 278 (H) X 16.5 (D) (max)
7 Weight (g) 2200 (max)
8 Surface treatment Anti-Glare, Haze=25%, Hard coating (3H) Note 1
9 Input color signal 8 bit LVDS
10 Display colors 16.7M (6 bit with Hi-FRC)
11 Color saturation 72% NTSC
12 Optimum viewing direction 6 o'clock
13 Backlight 2 CCFL
14 RoHS & Halogen free RoHS & Halogen free compliance
15 TCO'03 TCO'03 compliance Note 2
Note 1: Glare Option
Note 2: Only Anti-Glare can meet TCO'03 compliance
SPEC NO. M T 1 9 0 AW 0 2 V. 1
PAGE 5/21
B. Electrical specifications
1. Pin assignment
Connector
FOXCONN GS23302-0311S-7F or mechanical interface equivalent connector.
Pin No Symbol Description
Frame VSS Ground
1 RXinO0- -LVDS differential data input, Chan 0-Odd
2 RXinO0+ +LVDS differential data input, Chan 0-Odd
3 RXinO1- -LVDS differential data input, Chan 1-Odd
4 RXinO1+ +LVDS differential data input, Chan 1-Odd
5 RXinO2- -LVDS differential data input, Chan 2-Odd
6 RXinO2+ +LVDS differential data input, Chan 2-Odd
7 VSS Ground
8 RXOC- -LVDS differential Clock input (Odd)
9 RXOC+ +LVDS differential Clock input (Odd)
10 RXinO3- -LVDS differential data input, Chan 3-Odd
11 RXinO3+ +LVDS differential data input, Chan 3-Odd
12 RXinE0- -LVDS differential data input, Chan 0-Even
13 RXinE0+ +LVDS differential data input, Chan 0-Even
14 VSS Ground
15 RXinE1- -LVDS differential data input, Chan 1-Even
16 RXinE1+ +LVDS differential data input, Chan 1-Even
17 VSS Ground
18 RXinE2- -LVDS differential data input, Chan 2-Even
19 RXinE2+ +LVDS differential data input, Chan 2-Even
20 RXEC- -LVDS differential Clock input (Even)
21 RXEC+ +LVDS differential Clock input (Even)
22 RXinE3- -LVDS differential data input, Chan 3-Even
23 RXinE3+ +LVDS differential data input, Chan 3-Even
24 VSS Ground
25 NC No Connection
26 NC No Connection
27 NC No Connection
28 VCC +5.0V power supply
29 VCC +5.0V power supply
30 VCC +5.0V power supply
Frame VSS Ground
SPEC NO. M T 1 9 0 AW 0 2 V. 1
PAGE 6/21
Rear view of LCM
SPEC NO. M T 1 9 0 AW 0 2 V. 1
PAGE 7/21
2. Absolute maximum ratings
Values Unit
Parameter Symbol Remark
Min. Typ. Max.
Power voltage Vcc -0.3 - 6.0 V At 25◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
