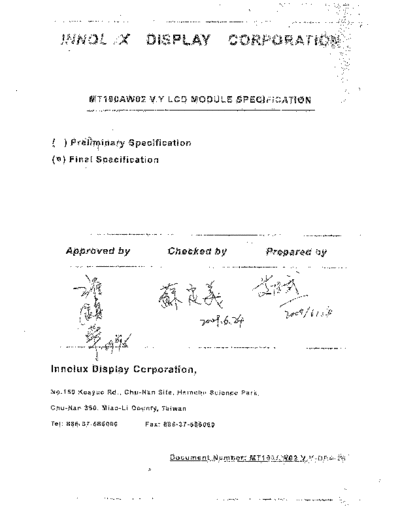

Image preview - the first page of the document
![Panel_INNOLUX_MT190AW02_V-Y_0_[DS]](/pics/5c8ede2544eaa.gif)
>> Download Panel_INNOLUX_MT190AW02_V-Y_0_[DS] documenatation <<
Text preview - extract from the document
SPEC NO. M T 1 9 0 AW 0 2 V. Y
PAGE 2/23
InnoLux copyright
Version: 4.0 All rights reserved,
Copying forbidden.
Record of Revision
Version Revise Date P a g e Content
1.0 2008/12/25 All First edition to all Pre-Spec.
2.0 2009/4/14 4 Add Halogen free compliance
10 Add T6 maximum value(10ms)
3.0 2009/6/17 10 Update T6 maximum value from 10ms to 50ms
4.0 2009/10/22 8 Update Power Input Ripple Max. value from 0.15V to 0.2V
12 Update Horizontal Htotal Min. value from 752 to 760
SPEC NO. M T 1 9 0 AW 0 2 V. Y
PAGE 3/23
Contents:
A. General Specification
B. Electrical Specifications
1. Pin assignment
2. Absolute maximum ratings
3. Electrical characteristics
a. Typical operating conditions
b. Display color vs. input data signals
c. Input signal timing
d. Display position
e. Backlight driving conditions
C. Optical specifications
D. Reliability test items
E. Safety
F. Display quality
G. Handling precaution
H. Label
I. Mechanical drawings
Appendix
SPEC NO. M T 1 9 0 AW 0 2 V. Y
PAGE 4/23
A General specification
NO. Item Specification Remark
1 Display resolution (pixel) 1,440(H) X 900(V), WXGA+ resolution
2 Active area (mm) 408.24(H) X 255.15(V)
3 Screen size (inch) 19 inches diagonal
4 Pixel pitch (mm) 0.2835(H) X 0.2835(V)
5 Color configuration R, G, B vertical stripe
6 Overall dimension (mm) 428 (W) X 278 (H) X 16.5 (D) (Max)
7 Weight (g) 2200 (max)
8 Surface treatment Anti-Glare, Haze=25%, Hard coating (3H) Note 1
9 Input color signal 8 bit LVDS
10 Display colors 16.7M (6 bit with Hi-FRC)
11 Color saturation 72% NTSC
12 Optimum viewing direction 6 o'clock
13 Backlight 4 CCFL
14 RoHS & Halogen free RoHS & Halogen free compliance
15 TCO'03 TCO'03 compliance Note 2
Note 1 Glare Option available
Note 2 Only Anti-Glare model can meet TCO'03 compliance
SPEC NO. M T 1 9 0 AW 0 2 V. Y
PAGE 5/23
B. Electrical specifications
1.Pin assignment
Connector
FOXCONN GS23302-0311S-7F or mechanical interface equivalent connector.
Pin No Symbol Description
Frame VSS Ground
1 RXinO0- -LVDS differential data input, Chan 0-Odd
2 RXinO0+ +LVDS differential data input, Chan 0-Odd
3 RXinO1- -LVDS differential data input, Chan 1-Odd
4 RXinO1+ +LVDS differential data input, Chan 1-Odd
5 RXinO2- -LVDS differential data input, Chan 2-Odd
6 RXinO2+ +LVDS differential data input, Chan 2-Odd
7 VSS Ground
8 RXOC- -LVDS differential Clock input (Odd)
9 RXOC+ +LVDS differential Clock input (Odd)
10 RXinO3- -LVDS differential data input, Chan 3-Odd
11 RXinO3+ +LVDS differential data input, Chan 3-Odd
12 RXinE0- -LVDS differential data input, Chan 0-Even
13 RXinE0+ +LVDS differential data input, Chan 0-Even
14 VSS Ground
15 RXinE1- -LVDS differential data input, Chan 1-Even
16 RXinE1+ +LVDS differential data input, Chan 1-Even
17 VSS Ground
18 RXinE2- -LVDS differential data input, Chan 2-Even
19 RXinE2+ +LVDS differential data input, Chan 2-Even
20 RXEC- -LVDS differential Clock input (Even)
21 RXEC+ +LVDS differential Clock input (Even)
22 RXinE3- -LVDS differential data input, Chan 3-Even
23 RXinE3+ +LVDS differential data input, Chan 3-Even
24 VSS Ground
25 NC No Connection
26 NC No Connection
27 NC No Connection
28 VCC +5.0V power supply
29 VCC +5.0V power supply
30 VCC +5.0V power supply
Frame VSS Ground
SPEC NO. M T 1 9 0 AW 0 2 V. Y
PAGE 6/23
Top view of LVDS connector
Rear view of LVDS connector
SPEC NO. M T 1 9 0 AW 0 2 V. Y
PAGE 7/23
2. Absolute maximum ratings
Values Unit
Parameter Symbol Remark
Min. Typ. Max.
Power voltage Vcc -0.3 - 6.0 V At 25◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
