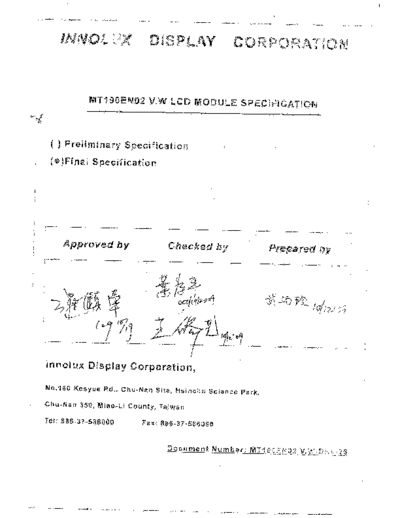

Image preview - the first page of the document
![Panel_INNOLUX_MT190EN02_V-W_0_[DS]](/pics/5c8ede275063f.gif)
>> Download Panel_INNOLUX_MT190EN02_V-W_0_[DS] documenatation <<
Text preview - extract from the document
SPEC NO. M T 1 9 0 E N 0 2 V. W
PAGE 2/24
InnoLux copyright
Version: 1.0 All rights reserved,
Copying forbidden.
Record of Revision
Version Revise Date P a g e Content
1.0 2009/08/31 All First edition to all Spec.
Revise General specification:
a.Add Power consumption.
4
b.Revise Weight from 1800(max) to 1500(max).
c.Revise Color saturation from 68% to 70%..
6 Revise Back View Drawing.
7 Revise Back View Drawing .
11 Revise T6 Parameter Max Value from 10 to 50
13 Revise T V - T O TA L Max from 1100 to 1150
Revise Backlight Unit Value:
a. Input VoltageTyp from 39.6 to 33,
14 b. Input Voltage Max from 40.8 to 34.
c.Input Current Max from 240 to 360.
d. Power consumption from 9.792 to 12.24.
24 Revise Back View Drawing
2.0 2009/09/24 14 Update Minimum Lifetime Value:25000(Hrs)
SPEC NO. M T 1 9 0 E N 0 2 V. W
PAGE 3/24
Contents:
A. General Specification
B. Electrical Specifications
1. Pin assignment
2. Absolute maximum ratings
3. Electrical characteristics
a. Typical operating conditions
b. Display color vs. input data signals
c. Input signal timing
d. Display position
e. Backlight Unit
C. Optical specifications
D. Reliability test items
E. Safety
F. Display quality
G. Handling precaution
H. Label
I. Mechanical drawings
Appendix
SPEC NO. M T 1 9 0 E N 0 2 V. W
PAGE 4/24
A. General specification
NO. Item Specification Remark
1 Display resolution (pixel) 1280(H) X 1024(V), WXGA+ resolution
2 Active area (mm) 376.32(H) X 301.06(V)
3 Screen size (inch) 19 inches diagonal
4 Pixel pitch (mm) 0.294(H) X 0.294(V)
5 Color configuration R, G, B vertical stripe
6 Overall dimension (mm) 396 (W) X 324 (H) X 9.8 (D) (Typ)
7 Weight (g) 1500 (max)
8 Surface treatment Anti-Glare, Haze=25%, Hard coating (3H) Note 1
9 Input color signal 8 bit LVDS
10 Display colors 16.7M (6 bit with Hi-FRC)
11 Color saturation 70% NTSC
12 Optimum viewing direction 6 o'clock
13 Power consumption 17.5(Watt) Note 2
14 Backlight W-LED
15 RoHS&HF RoHS & HF compliance
16 TCO'03 TCO'03 compliance Note 3
Note 1: Glare Option available
Note 2: The specified current is under the Vcc =5V, 25 C, fv=60Hz (frame frequency) condition
whereas black pattern is displayed.
Note 3 Only Anti-Glare model can meet TCO'03 compliance
SPEC NO. M T 1 9 0 E N 0 2 V. W
PAGE 5/24
B. Electrical specifications
1. Pin assignment
Connector
FOXCONN GS23302-0011R-7F or mechanical interface equivalent connector.
Pin No Symbol Description
Frame VSS Ground
1 RXinO0- -LVDS differential data input, Chan 0-Odd
2 RXinO0+ +LVDS differential data input, Chan 0-Odd
3 RXinO1- -LVDS differential data input, Chan 1-Odd
4 RXinO1+ +LVDS differential data input, Chan 1-Odd
5 RXinO2- -LVDS differential data input, Chan 2-Odd
6 RXinO2+ +LVDS differential data input, Chan 2-Odd
7 VSS Ground
8 RXOC- -LVDS differential Clock input (Odd)
9 RXOC+ +LVDS differential Clock input (Odd)
10 RXinO3- -LVDS differential data input, Chan 3-Odd
11 RXinO3+ +LVDS differential data input, Chan 3-Odd
12 RXinE0- -LVDS differential data input, Chan 0-Even
13 RXinE0+ +LVDS differential data input, Chan 0-Even
14 VSS Ground
15 RXinE1- -LVDS differential data input, Chan 1-Even
16 RXinE1+ +LVDS differential data input, Chan 1-Even
17 VSS Ground
18 RXinE2- -LVDS differential data input, Chan 2-Even
19 RXinE2+ +LVDS differential data input, Chan 2-Even
20 RXEC- -LVDS differential Clock input (Even)
21 RXEC+ +LVDS differential Clock input (Even)
22 RXinE3- -LVDS differential data input, Chan 3-Even
23 RXinE3+ +LVDS differential data input, Chan 3-Even
24 VSS Ground
25 NC No Connection
26 NC No Connection
27 NC No Connection
28 VCC +5.0V power supply
29 VCC +5.0V power supply
30 VCC +5.0V power supply
Frame VSS Ground
SPEC NO. M T 1 9 0 E N 0 2 V. W
PAGE 6/24
30 Pin LVDS Connector Pin Position
1st pin
1.2 Recommend Connector for Backlight Unit
This connector is mounted on the monitor system board for LED light-bar FFC mating.
Connector Name/Designation Driver Board Connector
Manufacturer Entery INDUSTRIAL CO.,LTD
Mating type part number 7080-Q10N-00R
1.3 LED Light Bar FFC
Upper FFC Pin Assignment:
Pin No Symbol Description
1 IRLED1 LED current sense for string 1
2 IRLED1 LED current sense for string 1
3 IRLED2 LED current sense for string 2
4 VLED LED power supply
5 VLED LED power supply
6 VLED LED power supply
7 VLED LED power supply
8 IRLED2 LED current sense for string 2
9 IRLED3 LED current sense for string 3
10 IRLED3 LED current sense for string 3
SPEC NO. M T 1 9 0 E N 0 2 V. W
PAGE 7/24
Lower FFC Pin Assignment:
Pin No Symbol Description
1 IRLED1 LED current sense for string 1
2 IRLED1 LED current sense for string 1
3 IRLED2 LED current sense for string 2
4 VLED LED power supply
5 VLED LED power supply
6 VLED LED power supply
7 VLED LED power supply
8 IRLED2 LED current sense for string 2
9 IRLED3 LED current sense for string 3
10 IRLED3 LED current sense for string 3
FFC pin position
1st pin
LVDS Connector
1st pin
SPEC NO. M T 1 9 0 E N 0 2 V. W
PAGE 8/24
Note: FFC specification:
Temperature 80 Voltage=60V Pin No.=10 0.5Pitch PET HF
2. Absolute maximum ratings
Ta=25 2
Values
Parameter Symbol Unit Note
Min. Typ. Max.
Power voltage Vcc -0.3 - 6.0 V At25◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
