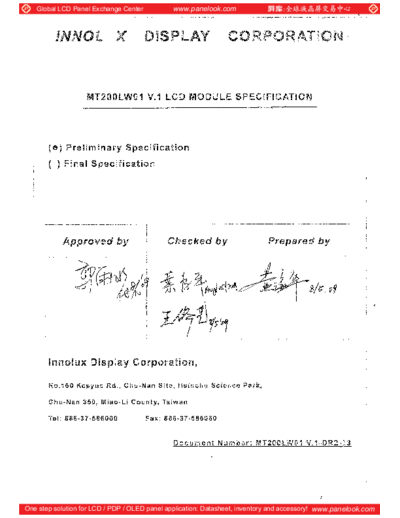

Image preview - the first page of the document
>> Download Panel_INNOLUX_MT200LW01_V-1_1_[DS] documenatation <<Text preview - extract from the document Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
InnoLux copyright
Version:1.0 All rights reserved,
Copying forbidden.
Record of Revision
Version Revise Date P a g e Content
1.0 2009/07/7 All First edition to all Pre-Spec.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. M T 2 0 0 LW 0 1 V. 1
PAGE 4/24
Contents:
A. General Specification
B. Electrical Specifications
1. Pin assignment
2. Absolute maximum ratings
3. Electrical characteristics
a. Typical operating conditions
b. Display color vs. input data signals
c. Input signal timing
d. Display position
e. Backlight Unit
C. Optical specifications
D. Reliability test items
E. Safety
F. Display quality
G. Handling precaution
H. Label
I. Mechanical drawings
Appendix
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. M T 2 0 0 LW 0 1 V. 1
PAGE 5/24
16 General specification
NO. Item Specification Remark
1 Display resolution (pixel) 1600(H) x 900(V),HD+ resolution
2 Active area (mm) 442.8(H)x 249.075(V)
3 Screen size (inch) 20 inches diagonal
4 Pixel pitch (mm) 0.2768 (H) x 0.2768 (V)
5 Color configuration R, G, B vertical stripe
6 Overall dimension (mm) 462.8 (H)x272.0(W) x9.8 (D) (Typ)
7 Weight (g) 1800(Max.)
8 Surface treatment Anti-Glare, Haze=25%, Hard coating (3H) Note 1
9 Input color signal 8 bit LVDS
10 Display colors 16.7M (6 bit with Hi-FRC)
11 Color saturation 68% NTSC
11 Optimum viewing direction 6 o'clock
12 Backlight Side-light bar (White LED)
13 RoHS & Halogen free RoHS & Halogen free compliance
14 TC0'5.0 TC0'5.0 Compliance Note 2
Note 1: Glare Option.
Note 2: Only Anti-Glare can meet TCO'5.0 compliance.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. M T 2 0 0 LW 0 1 V. 1
PAGE 6/24
B. Electrical specifications
1.Pin assignment
1.1. TFT panel Connector
FOXCONN GS23302-0011R-7F or mechanical interface equivalent connector.
Pin No Symbol Description
Frame VSS Ground
1 RXinO0- -LVDS differential data input, Chan 0-Odd
2 RXinO0+ +LVDS differential data input, Chan 0-Odd
3 RXinO1- -LVDS differential data input, Chan 1-Odd
4 RXinO1+ +LVDS differential data input, Chan 1-Odd
5 RXinO2- -LVDS differential data input, Chan 2-Odd
6 RXinO2+ +LVDS differential data input, Chan 2-Odd
7 VSS Ground
8 RXOC- -LVDS differential Clock input (Odd)
9 RXOC+ +LVDS differential Clock input (Odd)
10 RXinO3- -LVDS differential data input, Chan 3-Odd
11 RXinO3+ +LVDS differential data input, Chan 3-Odd
12 RXinE0- -LVDS differential data input, Chan 0-Even
13 RXinE0+ +LVDS differential data input, Chan 0-Even
14 VSS Ground
15 RXinE1- -LVDS differential data input, Chan 1-Even
16 RXinE1+ +LVDS differential data input, Chan 1-Even
17 VSS Ground
18 RXinE2- -LVDS differential data input, Chan 2-Even
19 RXinE2+ +LVDS differential data input, Chan 2-Even
20 RXEC- -LVDS differential Clock input (Even)
21 RXEC+ +LVDS differential Clock input (Even)
22 RXinE3- -LVDS differential data input, Chan 3-Even
23 RXinE3+ +LVDS differential data input, Chan 3-Even
24 VSS Ground
25 NC No Connection
26 NC No Connection
27 NC No Connection
28 VCC +5.0V power supply
29 VCC +5.0V power supply
30 VCC +5.0V power supply
Frame VSS Ground
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. M T 2 0 0 LW 0 1 V. 1
PAGE 7/24
1.2. Recommend Connector for Backlight Unit
This connector is mounted on the monitor system board for LED light-bar FFC mating.
Connector Name/Designation Match Connector
Manufacturer Entery INDUSTRIAL CO.,LTD
Mating type part number 7080-Q10N-00R
1.3. Light-bar Connector Pin Assignment
Upper Light-bar Connector Pin Assignment:
Pin No Symbol Description
1 IRLED1 LED current sense for string 1
2 IRLED1 LED current sense for string 1
3 IRLED2 LED current sense for string 2
4 VLED LED power supply
5 VLED LED power supply
6 VLED LED power supply
7 VLED LED power supply
8 IRLED2 LED current sense for string 2
9 IRLED3 LED current sense for string 3
10 IRLED3 LED current sense for string 3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. M T 2 0 0 LW 0 1 V. 1
PAGE 8/24
Lower Light-bar Connector Pin Assignment:
Pin No Symbol Description
1 IRLED1 LED current sense for string 1
2 IRLED1 LED current sense for string 1
3 IRLED2 LED current sense for string 2
4 VLED LED power supply
5 VLED LED power supply
6 VLED LED power supply
7 VLED LED power supply
8 IRLED2 LED current sense for string 2
9 IRLED3 LED current sense for string 3
10 IRLED3 LED current sense for string 3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. M T 2 0 0 LW 0 1 V. 1
PAGE 9/24
2. Absolute maximum ratings
Values
Parameter Symbol Unit Remark
Min. Typ. Max.
Power voltage Vcc -0.3 - 6.0 V At 25
