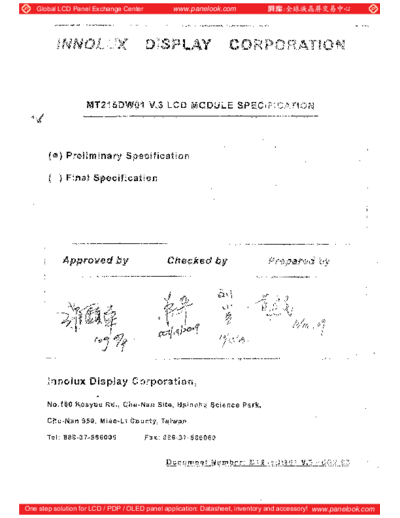

Image preview - the first page of the document
![Panel_INNOLUX_MT215DW01_V-3_1_[DS]](/pics/5c8ede3daab97.gif)
>> Download Panel_INNOLUX_MT215DW01_V-3_1_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
InnoLux copyright
Version: 1.0 All rights reserved,
Copying forbidden.
Record of Revision
Version Revise Date P a g e Content
1.0 2009/09/28 First edition to all Pre-Spec.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. M T 2 1 5 D W 0 1 V. 3
PAGE 4/24
Contents:
A. General Specification 5
B. Electrical Specifications 6
1. Pin assignment 6
2. Absolute maximum ratings 8
3. Electrical characteristics 9
a. Typical operating conditions 9
b. Display color vs. input data signals 12
c. Input signal timing 13
d. Display position 14
e. Backlight driving conditions 14
C. Optical specifications 16
D. Reliability test items 19
E. Safety 20
F. Display quality 20
G. Handling precaution 20
H. Label 21
I. Mechanical drawings 23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. M T 2 1 5 D W 0 1 V. 3
PAGE 5/24
A. General specification
NO. Item Specification Remark
1 Display resolution (pixel) 1920(H) X 1080(V), Full HD resolution
2 Active area (mm) 476.64(H) X268.11 (V)
3 Screen size (inch) 21.53 inches diagonal
4 Pixel pitch (mm) 0.24825(H) X0.24825 (V)
5 Color configuration R, G, B vertical stripe
6 Overall dimension (mm) 495.6(W) X 292.2(H) X 9.8(D) (typ.)
7 Color Gamut 70%
8 Weight (g) 1800g
9 Surface treatment Anti-Glare, Haze=25%, Hard coating (3H) Note 1
10 Input color signal 8 bit LVDS
11 Display colors 16.7M (6 bit with Hi-FRC)
12 Optimum viewing direction 6 o'clock
13 Backlight White-LED
14 Others TCO 5.0 & RoHS & Halogen Free compliance
Note 1: Glare Option.
Note 2: Only Anti-Glare can meet TCO 5.0
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. M T 2 1 5 D W 0 1 V. 3
PAGE 6/24
B. Electrical specifications
1. Pin assignment
Connector
FOXCONN GS23302-0011 R-7F or mechanical interface equivalent connector.
Pin No Symbol Description
Frame VSS Ground
1 RXinO0- -LVDS differential data input, Chan 0-Odd
2 RXinO0+ +LVDS differential data input, Chan 0-Odd
3 RXinO1- -LVDS differential data input, Chan 1-Odd
4 RXinO1+ +LVDS differential data input, Chan 1-Odd
5 RXinO2- -LVDS differential data input, Chan 2-Odd
6 RXinO2+ +LVDS differential data input, Chan 2-Odd
7 VSS Ground
8 RXOC- -LVDS differential Clock input (Odd)
9 RXOC+ +LVDS differential Clock input (Odd)
10 RXinO3- -LVDS differential data input, Chan 3-Odd
11 RXinO3+ +LVDS differential data input, Chan 3-Odd
12 RXinE0- -LVDS differential data input, Chan 0-Even
13 RXinE0+ +LVDS differential data input, Chan 0-Even
14 VSS Ground
15 RXinE1- -LVDS differential data input, Chan 1-Even
16 RXinE1+ +LVDS differential data input, Chan 1-Even
17 VSS Ground
18 RXinE2- -LVDS differential data input, Chan 2-Even
19 RXinE2+ +LVDS differential data input, Chan 2-Even
20 RXEC- -LVDS differential Clock input (Even)
21 RXEC+ +LVDS differential Clock input (Even)
22 RXinE3- -LVDS differential data input, Chan 3-Even
23 RXinE3+ +LVDS differential data input, Chan 3-Even
24 VSS Ground
25 NC No Connection
26 NC No Connection
27 NC No Connection
28 VCC +5.0V power supply
29 VCC +5.0V power supply
30 VCC +5.0V power supply
Frame VSS Ground
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. M T 2 1 5 D W 0 1 V. 3
PAGE 7/24
First pin
First pin
Rear View of LCM
1.2. Recommend Connector for Backlight Unit
This connector is mounted on the monitor system board for LED light-bar FFC mating.
Connector Name/Designation Match Connector
Manufacturer Entery INDUSTRIAL CO.,LTD
Mating type part number 7080-Q10N-00R
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. M T 2 1 5 D W 0 1 V. 3
PAGE 8/24
1.3 Light-bar Connector Pin Assignment
Upper Light-bar Connector Pin Assignment:
Pin No Symbol Description
1 IRLED1 LED current sense for string 1
2 IRLED1 LED current sense for string 1
3 IRLED2 LED current sense for string 2
4 VLED LED power supply
5 VLED LED power supply
6 VLED LED power supply
7 VLED LED power supply
8 IRLED2 LED current sense for string 2
9 IRLED3 LED current sense for string 3
10 IRLED3 LED current sense for string 3
Lower Light-bar Connector Pin Assignment:
Pin No Symbol Description
1 IRLED1 LED current sense for string 1
2 IRLED1 LED current sense for string 1
3 IRLED2 LED current sense for string 2
4 VLED LED power supply
5 VLED LED power supply
6 VLED LED power supply
7 VLED LED power supply
8 IRLED2 LED current sense for string 2
9 IRLED3 LED current sense for string 3
10 IRLED3 LED current sense for string 3
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. M T 2 1 5 D W 0 1 V. 3
PAGE 9/24
2. Absolute maximum ratings
Values Unit
Parameter Symbol Remark
Min. Typ. Max.
Power voltage Vcc -0.3 - 6.0 V At 25◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
