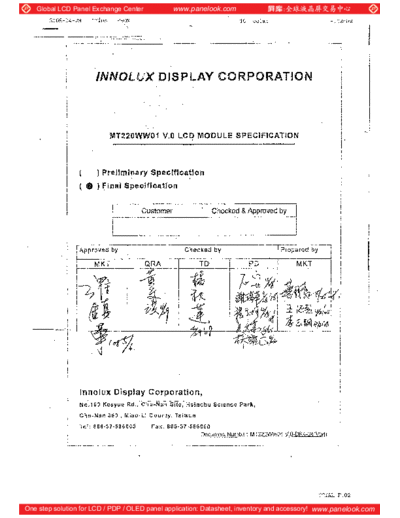

Image preview - the first page of the document



>> Download Panel_INNOLUX_MT220WW01_V-0_1_[DS] documenatation <<

Text preview - extract from the document

   Global LCD Panel Exchange Center           www.panelook.com




One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
   Global LCD Panel Exchange Center           www.panelook.com


            Version:04                                                                 InnoLux copyright
                                                                                       All rights reserved,
                                                                                       Copying forbidden.

                                           Record of Revision
         Version Revise Date    Page                                  Content

            01     2006-08-10     All   Initial release

                                        Update lamp voltage spec to 715(Min.) 794(Typ.) 873(Max.) @7mA.
            02     2007-10-30     12
                                        Add lamp life time typical value 50000hrs.

                                        Update the minimum value of the Dclk from 56MHz to 47.1MHz.
                                  11
            03     2007-11-08           Update the minimum value of fv from 56Hz to 50Hz.

                                   7    Add the max. value of input current 1400mA at black pattern.

                                        Update the lamp voltage spec to min. 680(8mA), typ. 794(7mA), max.
                                        955(3mA) and add the variance of the opertating voltage
