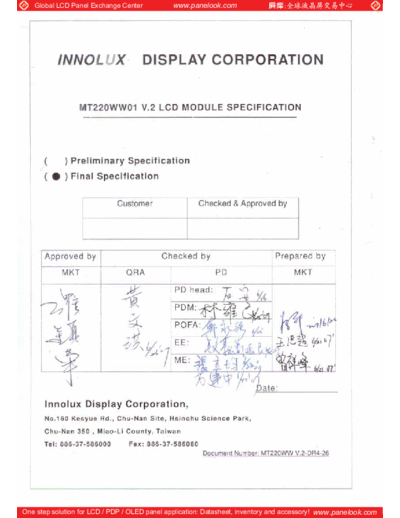

Image preview - the first page of the document

>> Download Panel_INNOLUX_MT220WW01_V-2_0_[DS] documenatation <<

Text preview - extract from the document

Global LCD Panel Exchange Center www.panelook.com

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

Version:02 InnoLux copyright
All rights reserved,
Copying forbidden.

Record of Revision

Version Revise Date Page Content

01 2007-04-03 All Initial release

02 2007-06-21 12 Update the Lamp staring voltage

14 Update the Color chromaticity

21-22 Update the ME Drawing

One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

SPEC NO. M T 2 2 0W W 0 1 V. 2

PAG E 3/22

Contents:
A. General Specification

B. Electrical Specifications

1. Pin assignment

2. Absolute maximum ratings

3. Electrical characteristics

a. Typical operating conditions

b. Display color vs. input data signals

c. Input signal timing

d. Display position

e. Backlight driving conditions

C. Optical specifications

D. Reliability test items

E. Safety

F. Display quality

G. Handling precaution

H. Label

I. Mechanical drawings

Appendix

ALL RIGHTS RESERVED ANY PORTION OF THIS DOCUMENT SHALL NOT BE REPRODUCED, COPIED, OR TRANSFORMED
TO ANY OTHER FORMS WITHOUT PRIOR WRITTEN PERMISSION FROM INNOLUX DISPLAY CORPORATION.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com

SPEC NO. M T 2 2 0W W 0 1 V. 2

PAG E 4/22

A. General Specification
NO. Item Specification Remark

1 Display resolution (pixel) 1,680(H) X R.G.B X 1,050(V), WSXGA+ resolution

2 Active area (mm) 473.76(H) X 296.1(V)

3 Screen size (inch) 22 inches diagonal

4 Pixel pitch (mm) 0.282(H) X 0.282(V)

5 Color configuration R, G, B vertical stripe

6 Overall dimension (mm) 493.7 (W) X 320.1 (H) X 16.5 (D) (typ.)

7 Weight (g) 2,900 (max.)

8 Surface treatment Anti-glare, Haze = 25%, Hard coating (3H)

9 Input color signal 8 bit LVDS

10 Display colors 16.7 M (6 bit with Hi-FRC)

11 Optimum viewing direction 6 o'clock

12 Backlight 4 CCFL

13 RoHS RoHS compliance

SPEC NO. M T 2 2 0W W 0 1 V. 2

PAG E 5/22

B. Electrical Specifications
1.Pin assignment
Connector
JAE FI-XB30SSRL-HF16, Foxconn GS23302-0311R-7F or mechanical interface equivalent connector.

Pin No. Symbol Description

Frame VSS Ground
1 RXinO0- -LVDS differential data input, Chan 0-Odd
2 RXinO0+ +LVDS differential data input, Chan 0-Odd
3 RXinO1- -LVDS differential data input, Chan 1-Odd
4 RXinO1+ +LVDS differential data input, Chan 1-Odd
5 RXinO2- -LVDS differential data input, Chan 2-Odd
6 RXinO2+ +LVDS differential data input, Chan 2-Odd
7 VSS Ground
8 RXOC- -LVDS differential Clock input (Odd)
9 RXOC+ +LVDS differential Clock input (Odd)
10 RXinO3- -LVDS differential data input, Chan 3-Odd
11 RXinO3+ +LVDS differential data input, Chan 3-Odd
12 RXinE0- -LVDS differential data input, Chan 0-Even
13 RXinE0+ +LVDS differential data input, Chan 0-Even
14 VSS Ground
15 RXinE1- -LVDS differential data input, Chan 1-Even
16 RXinE1+ +LVDS differential data input, Chan 1-Even
17 VSS Ground
18 RXinE2- -LVDS differential data input, Chan 2-Even
19 RXinE2+ +LVDS differential data input, Chan 2-Even
20 RXEC- -LVDS differential Clock input (Even)
21 RXEC+ +LVDS differential Clock input (Even)
22 RXinE3- -LVDS differential data input, Chan 3-Even
23 RXinE3+ +LVDS differential data input, Chan 3-Even
24 VSS Ground
25 VSS Ground
26 NC No Connection
27 VSS Ground
28 VCC +5.0V power supply
29 VCC +5.0V power supply
30 VCC +5.0V power supply
Frame VSS Ground

SPEC NO. M T 2 2 0W W 0 1 V. 2

PAG E 6/22

#1 #30

Rear view of LCM

2. Absolute maximum ratings
Values Unit
Parameter Symbol Remark

Min. Max.

Power voltage Vcc -0.3 6 V At 25
