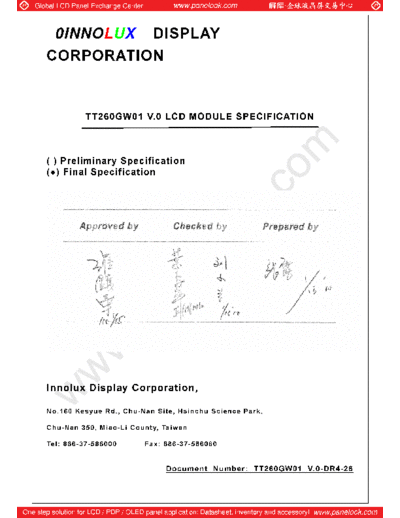

Image preview - the first page of the document
![Panel_INNOLUX_TT260GW01_V-0_0_[DS]](/pics/5e96bf24e3aec.gif)
>> Download Panel_INNOLUX_TT260GW01_V-0_0_[DS] documenatation <<
Text preview - extract from the document
Global LCD Panel Exchange Center www.panelook.com
0INNOLUX DISPLAY
CORPORATION
TT260GW01 V.0 LCD MODULE SPECIFICATION
( ) Preliminary Specification
( ) Final Specification
Innolux Display Corporation,
No.160 Kesyue Rd., Chu-Nan Site, Hsinchu Science Park,
Chu-Nan 350, Miao-Li County, Taiwan
Tel: 886-37-586000 Fax: 886-37-586060
Document Number: TT260GW01 V. 0-DR4-26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
INNOLUX DISPLAY CORPORATION
TT260GW01 V.0 LCD MODULE SPECIFICATION
Innolux Display Corporation
Docume nt Number: TT260GW01 V. 0-DR4-26
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
InnoLux copyright
All rights reserved,
Copying forbidden.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. T T 2 6 0 G W 0 1 V. 0
PAGE 4/24
Contents:
A. General Specification 5
B. Electrical Specifications 6
1. Pin Assignment 6
2. Absolute Maximum Ratings 9
3. Electrical Characteristics 10
a. Typical Operating Conditions 10
b. Display Color vs. Input Data Signals 13
c. Input Signal Timing 14
d. Display Position 15
e. Backlight Unit 15
C. Optical Specifications 16
D. Reliability Test Items 19
E. Safety 20
F. Display Quality 20
G. Handling Precaution 20
H. Label 21
I. Mechanical Drawings 23
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. T T 2 6 0 G W 0 1 V. 0
PAGE 5/24
A. General Specification
NO. Item Specification Remark
1 Display resolution (pixel) 1366(H) X 768(V), HD
2 Active area (mm) 575.769 (H) x 323.712(V)
3 Screen size (inch) 26 inches diagonal
4 Pixel pitch (mm) 0.4215 (H) X 0.4215 (V)
5 Color configuration R, G, B vertical stripe
6 Overall dimension (mm) 626 (W) X 373 (H) X 14.5(D) (Typ.)
7 Weight (g) 3300 (Typ.)
8 Surface treatment Anti-Glare, Haze=25%, Hard coating (3H) Note 1
9 Input color signal 8 bit LVDS
10 Display colors 16.7M (6 bit with Hi-FRC)
11 Color Saturation 70% NTSC
12 Optimum viewing direction 6 o'clock
13 Backlight Side-light bar (White LED)
14 RoHS & Halogen Free RoHS & Halogen Free compliance
15 TCO'06 TCO'06 Compliance Note 2
Note 1: Glare Option available
Note 2: Only Anti-Glare model can meet TCO'06 compliance.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. T T 2 6 0 G W 0 1 V. 0
PAGE 6/24
B. Electrical Specifications
1. Pin Assignment
1.1. LVDS Connector
FI-X30SSL-HF_SJ038319 or mechanical interface equivalent connector.
No Symbol Description
1 VCC Power supply (+12V)
2 VCC Power supply (+12V)
3 VCC Power supply (+12V)
4 VCC Power supply (+12V)
5 GND Ground
6 GND Ground
7 GND Ground
8 GND Ground
9 NC No Connection
10 NC No Connection
11 GND Ground
12 RxE0- Negative transmission data of pixel 0
13 RxE0+ Positive transmission data of pixel 0
14 GND Ground
15 RxE1- Negative transmission data of pixel 1
16 RxE1+ Positive transmission data of pixel 1
17 GND Ground
18 RxE2- Negative transmission data of pixel 2
19 RxE2+ Positive transmission data of pixel 2
20 GND Ground
21 RXCLK- Negative of clock
22 RXCLK+ Positive of clock
23 GND Ground
24 RxE3- Negative transmission data of pixel 3
25 RxE3+ Positive transmission data of pixel 3
26 GND Ground
27 NC No Connection
28 NC No Connection
29 GND Ground
30 GND Ground
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. T T 2 6 0 G W 0 1 V. 0
PAGE 7/24
First pin First pin
Rear View of LCM
1.2 Recommend Connector for Backlight Unit
This connector is mounted on the monitor system board for LED light-bar FFC mating.
Connector Name/Designation Match Connector
Manufacturer Entery INDUSTRIAL CO.,LTD
Mating type part number 4031K-F02N-01R
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. T T 2 6 0 G W 0 1 V. 0
PAGE 8/24
1.3 LED Light Bar Connector
Left Connector Pin Assignment:
Pin No Symbol Description
1 IRLED1 LED current sense for string
2 VLED LED power supply
Right Connector Pin Assignment:
Pin No Symbol Description
1 IRLED1 LED current sense for string
2 VLED LED power supply
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! www.panelook.com
Global LCD Panel Exchange Center www.panelook.com
SPEC NO. T T 2 6 0 G W 0 1 V. 0
PAGE 9/24
2. Absolute Maximum Ratings
Values
Parameter Symbol Unit Remark
Min. Typ. Max.
Power voltage Vcc -0.3 - 13 V At 25
Input signal voltage VLH -0.3 - 3.6 V At 25
