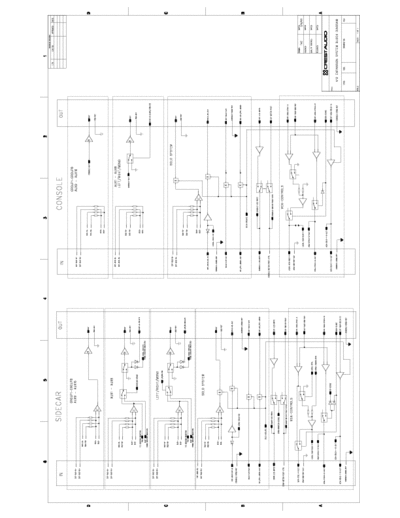

Image preview - the first page of the document
>> Download v12sidecar1 documenatation <<
Text preview - extract from the document
V12 SIDECAR INTERMASTER CON
Pin # Signal Notes Pin # Signal Notes
A1 Meter Grp to Bank Sel To Meter Mux C1 Meter Aux1-8 to Bank Sel To Meter Mux
A2 Meter Aux9-16 to Bank Sel To Meter Mux C2 Meter Mtx1-8 to Bank Sel To Meter Mux
A3 Meter Mtx9-16 to Bank Sel To Meter Mux C3 Local Meter Control To Sidecar Master Motherboard
A4 Lamp Ctrl To Meter Mux C4 OP (Relay) Disable From Meter Mux (power sense)
A5 Local Aux1 to Meter To Meter Mux C5 Local Aux2 to Meter To Meter Mux
A6 Local Aux3 to Meter To Meter Mux C6 Local Aux4 to Meter To Meter Mux
A7 Local Aux5 to Meter To Meter Mux C7 Local Aux6 to Meter To Meter Mux
A8 Local Aux7 to Meter To Meter Mux C8 Local Aux8 to Meter To Meter Mux
A9 Local Monitor L to Meter To Meter Mux C9 Local Monitor R to Meter To Meter Mux
A10 Local Aux 1 Pre From Sidecar Mix-Amp PCB C10 Local Aux 1 Post To Sidecar Mix-Amp PCB
A11 Local Aux 2 Pre From Sidecar Mix-Amp PCB C11 Local Aux 2 Post To Sidecar Mix-Amp PCB
A12 Local Aux 3 Pre From Sidecar Mix-Amp PCB C12 Local Aux 3 Post To Sidecar Mix-Amp PCB
A13 Local Aux 4 Pre From Sidecar Mix-Amp PCB C13 Local Aux 4 Post To Sidecar Mix-Amp PCB
A14 Local Aux 5 Pre From Sidecar Mix-Amp PCB C14 Local Aux 5 Post To Sidecar Mix-Amp PCB
A15 Local Aux 6 Pre From Sidecar Mix-Amp PCB C15 Local Aux 6 Post To Sidecar Mix-Amp PCB
A16 Local Aux 7 Pre From Sidecar Mix-Amp PCB C16 Local Aux 7 Post To Sidecar Mix-Amp PCB
A17 Local Aux 8 Pre From Sidecar Mix-Amp PCB C17 Local Aux 8 Post To Sidecar Mix-Amp PCB
A18 Local Mono Pre From Sidecar Mix-Amp PCB C18 Local Mono Post To Sidecar Mix-Amp PCB
A19 Local Left Pre From Sidecar Mix-Amp PCB C19 Local Left Post To Sidecar Mix-Amp PCB
A20 Local Right Pre From Sidecar Mix-Amp PCB C20 Local Right Post To Sidecar Mix-Amp PCB
A21 Local Aux1 Isolate Ctrl to Sidecar Mix-Amp PCB C21 Local Aux2 Isolate Ctrl to Sidecar Mix-Amp PCB
A22 Local Aux3 Isolate Ctrl to Sidecar Mix-Amp PCB C22 Local Aux4 Isolate Ctrl to Sidecar Mix-Amp PCB
A23 Local Aux5 Isolate Ctrl to Sidecar Mix-Amp PCB C23 Local Aux6 Isolate Ctrl to Sidecar Mix-Amp PCB
A24 Local Aux7 Isolate Ctrl to Sidecar Mix-Amp PCB C24 Local Aux8 Isolate Ctrl to Sidecar Mix-Amp PCB
A25 L/R/M Pre to Master Ctrl to Sidecar Mix-Amp PCB C25 L/R Isolate Ctrl to Sidecar Mix-Amp PCB
A26 Mono Isolate Ctrl to Sidecar Mix-Amp PCB C26 Solo Isolate Ctrl to Sidecar Mix-Amp PCB
A27 Local Slave Control Ctrl from Sidecar Mix-Amp PCB C27 Local Master Module Sense Ctrl To Sidecar Mix-Amp PCB
A28 Local Solo Left Pre From Sidecar Mix-Amp PCB C28 Local Solo Right Pre From Sidecar Mix-Amp PCB
A29 OP Solo Clear To Sidecar Mix-Amp PCB C29 DGND (scar sense) Sidecar Sense
A30 DGND C30 DGND
A31 SOLO-Tally To Meter Mux C31 Spare
A32 AGND C32 AGND
v12pinot Page 1 4/27/00
V12 EXPANSION CABLE PINOUT PAGE1
CORE NUMBER CORE JACKET WIRE COLOR SHIELD HYPERTRONICS SIGNAL
COLOR LINK PIN NUMBER NAME
Clear K15 GROUP1
1 Black Brown K14 GROUP2
Shield 1 F15
Clear J15 GROUP3
2 Black Red J14 GROUP4
Shield 1 F15
Clear H15 GROUP5
3 Black Orange H14 GROUP6
Shield 1 F15
Clear G15 GROUP7
4 Black Yellow G14 GROUP8
Shield 1 F15
Clear NOT USED
5 Black Green F14 MONO
Shield 2 C15
Clear E15 LEFT
6 Black Blue E14 RIGHT
Shield 2 C15
Clear D15 SOLO LEFT
7 Black Purple D14 SOLO RIGHT
Shield 2 C15
Clear C14 AUX1
8 Black Gray B15 AUX2
Shield 3 J1
Clear B14 AUX3
9 Black White A15 AUX4
Shield 3 J1
Clear A14 AUX5
10 Brown Black K2 AUX6
Shield 3 J1
Clear K1 AUX7
11 Brown Brown J2 AUX8
Shield 3 J1
Clear H2 AUX9
12 Brown Red H1 AUX10
Shield 4 D2
Clear G2 AUX11
13 Brown Orange G1 AUX12
Shield 4 D2
Clear F2 AUX13
14 Brown Yellow F1 AUX14
Shield 4 D2
Clear E2 AUX15
15 Brown Green E1 AUX16
Shield 4 D2
Clear B2 GLOBAL9/10
16 Brown Blue B1 GLOBAL11/12
Shield 5 C1
CORE NUMBER CORE JACKET WIRE COLOR SHIELD HYPERTRONICS SIGNAL
COLOR LINK PIN NUMBER NAME
Clear A2 GLOBAL13/14
HYPERTRONICS PINOUT3 REDUCED 4/27/00 PAGE 1 of 4
V12 EXPANSION CABLE PINOUT PAGE2
17 Brown Purple A1 GLOBAL15/16
Shield 5 C1
Clear K3 VCA CTRL1
18 Brown Gray J4 VCA CTRL2
Shield 6 D3
Clear J3 VCA CTRL3
19 Brown White H4 VCA CTRL4
Shield 6 D3
Clear H3 VCA CTRL5
20 Red Black G4 VCA CTRL6
Shield 6 D3
Clear G3 VCA CTRL7
21 Red Brown F4 VCA CTRL8
Shield 6 D3
Clear F3 VCA CTRL9
22 Red Red E4 VCA CTRL10
Shield 6 D3
Clear E3 VCA CTRL11
23 Red Orange D4 VCA CTRL12
Shield 6 D3
Clear C4 VCA SOLO1
24 Red Yellow C3 VCA SOLO2
Shield 7 D1
Clear B4 VCA SOLO3
25 Red Green B3 VCA SOLO4
Shield 7 D1
Clear A4 VCA SOLO5
26 Red Blue A3 VCA SOLO6
Shield 7 D1
Clear K13 VCA SOLO7
27 Red Purple K12 VCA SOLO8
Shield 7 D1
Clear J13 VCA SOLO9
28 Red Gray J12 VCA SOLO10
Shield 7 D1
Clear H13 VCA SOLO11
29 Red White H12 VCA SOLO12
Shield 7 D1
Clear G13 IP SOLO DC
30 Orange Black G12 IP SOLO CLR
Shield 8 K4
Clear F13 OP SOLO DC
31 Orange Brown F12 OP SOLO CLR
Shield 8 K4
Clear E13 OP SOLO DSBL
32 Orange Red E12 AFL/PFL MODE
Shield 8 K4
CORE NUMBER CORE JACKET WIRE COLOR SHIELD HYPERTRONICS SIGNAL
COLOR LINK PIN NUMBER NAME
Orange Clear D13 LED BRITE
33 Orange D12 MTR POST CTRL
Shield 9 C2
Clear C13 SIP MODE
HYPERTRONICS PINOUT3 REDUCED 4/27/00 PAGE 2 of 4
V12 EXPANSION CABLE PINOUT PAGE3
34 Orange Yellow C12 IP MICRO ENBL
Shield B13 SLAVE MODE
Clear J5 METER DATA+
35 Orange Green H5 METER DATA-
Shield K5
Clear J11 METER CLK+
36 Orange Blue H11 METER CLK-
Shield K11
CORE SHIELDS LINKING INFORMATION
CORE NUMBER HYPERTRONICS PIN NUMBER
1, 2, 3, 4 F15
5, 6, 7 C15
8, 9, 10, 11 J1
12,13,14,15 D2
16, 17 C1
18, 19, 20, 21, 22, 23 D3
24, 25, 26, 27, 28, 29 D1
30, 31, 32 K4
33 C2
34 B13
35 K5
36 K11
NOTE: THE ABOVE CORES HAVE THEIR SHIELDS COMBINED AND
TIED TO THE INDICATED HYPERTRONICS PIN.
UN-USED HYPERTRONICS PINS
G5 G11
F5 F11 F12 F13
E5 E11 E13
D5 D11
C5 C11
B5 B11
A5 A11
FIRST ISSUE ERRORS - THE FOLLOWING ERRORS WERE FOUND ON THE FIRST
PRODUCED SNAKE CABLE.
A) SHIELDS OF CORE 30, 31, 32, 35 WERE CONNECTED TOGETHER AND CONNECTED TO PIN K5 OF
HYPERTRONICS CONNECTOR. CORRECT ARRANGEMENT IS THAT SHIELD CORE 35 CONNECTS
TO PIN K5 AND SHIELD OF CORES 30, 31, 32 CONNECT TO PIN K4
HYPERTRONICS PINOUT3 REDUCED 4/27/00 PAGE 3 of 4
V12 EXPANSION CABLE PINOUT PAGE4
TO PIN K5 AND SHIELD OF CORES 30, 31, 32 CONNECT TO PIN K4
B) SHIELDS OF CORE 33 AND 34 WERE CONNECTED TOGETHER AND CONNECTED TO PIN C2 OF
HYPERTRONICS CONNECTOR. CORRECT ARRANGEMENT IS THAT SHIELD OF CORE 33 CONNECTS TO
PIN C2, AND SHIELD OF CORE 34 CONNECTS TO B13.
C) ADDITIONAL INFORMATION - IF AT ALL POSSIBLE WE WOULD LIKE TO SEE CORE 35 AND CORE 36
WIRES BE AS SHORT AS POSSIBLE. ( I.E. EXPOSED WIRE BE AS SMALL AS POSSIBLE) . THE SIGNALS
ON THESE WIRES NEED TO BE ISOLATED AS MUCH AS POSSIBLE AND SHIELDED AS MUCH AS
POSSIBLE.
HYPERTRONICS PINOUT3 REDUCED 4/27/00 PAGE 4 of 4
