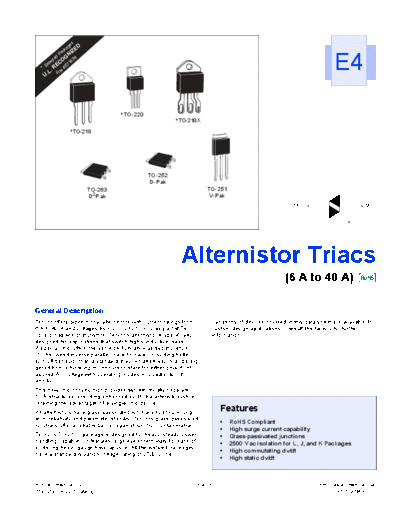

Image preview - the first page of the document



>> Download E4AlternistorTriac documenatation <<

Text preview - extract from the document

                                      s
                                 ge
                               ka      Z  ED
                                    NI

                                                                                                                                              E4
                           c
                        Pa
                   ed    G
                ct     O 1639
                     EC #E7
              le
         Se        R
     *
           L.             le
         U.          Fi




                                                         *TO-220
                                                                            *TO-218X

                                    *TO-218




                                                                   TO-252
                                                                    D-Pak
                                               TO-263                                  TO-251
                                               D 2 Pak                                  V-Pak
                                                                                                                             MT2                            MT1


                                                                                                                                                    G




                                                                             Alternistor Triacs
                                                                                                                         (6 A to 40 A)                   RoHS



E4
General Description
Teccor offers bidirectional alternistors with current ratings from                          Variations of devices covered in this data sheet are available for
6 A to 40 A and voltages from 200 V to 1000 V as part of Tec-                               custom design applications. Consult the factory for further
cor's broad line of thyristors. Teccor's alternistor is specifically                        information.
designed for applications that switch highly inductive loads.
A special chip offers the same performance as two thyristors
(SCRs) wired inverse parallel (back-to-back), providing better
turn-off behavior than a standard triac. An alternistor may be trig-
gered from a blocking to conduction state for either polarity of
applied AC voltage with operating modes in Quadrants I, II,
and III.
This new chip construction provides two electrically separate
SCR structures, providing enhanced dv/dt characteristics while
retaining the advantages of a single-chip device.
All alternistors have glass-passivated junctions to ensure long-                               Features
term reliability and parameter stability. Teccor's glass-passivated
