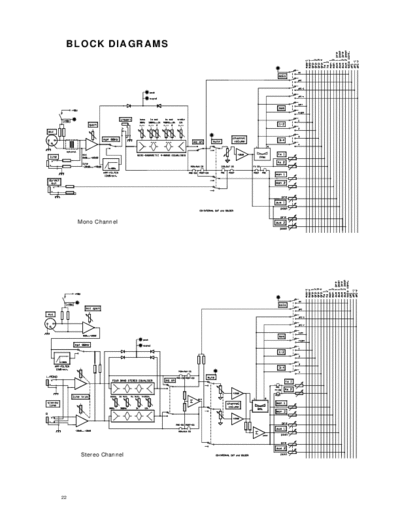

Image preview - the first page of the document
>> Download midas_venice_160,240,320 documenatation <<
Text preview - extract from the document
BLOCK DIAGRAMS
Mono Channel
Stereo Channel
22
FX-send, FX-return
Aux, Groups and Talkback
23
Master, Monitor, Tape and Solo
24
MIDAS Venice Pin-Assignments Page 1 / 3
Mono-Channel-PCB 81346 Stereo- / Master - PCB 82230
CN 1 circuit diagram number CN 6 circuit diagram number CN 7 circuit diagram number CN 1 circuit diagram number CN 6 circuit diagram number CN 7 circuit diagram number
CN1A 357 413 / 2- 375 414 / 2- 357 414 / 2- CN1E 357 417 / 2- CN1A 357 421 / 3- 357 421 / 3-
CN1B 357 414 / 2- CN1F 357 418 / 2- CN1B 357 421 / 3-
CN1C 357 415 / 2-
CN1D 357 416 / 2- Pin Assignment Pin Assignment Pin Assignment
1 L- 1 GND 1 PFL
Pin Assignment Pin Assignment Pin Assignment 2 L+ 2 Master L 2 Solo Cont
1 LED 12A 1 GND 1 PFL 3 R- 3 Master GND SE 3 AFL-L
2 GND 2 Master L 2 Solo Cont 4 R+ 4 Master R 4 Solo GND SE
3 Mic In + 3 Master GND SE 3 AFL-L 5 Mic + 5 GND 5 AFL-R
4 Mic In - 4 Master R 4 Solo GND SE 6 Mic - 6 Grp 1 6 GND
5 GND package 5 GND 5 AFL-R 7 GND package 7 GND 7 GND
6 Ins Send 6 Grp 1 6 GND 8 LED A 8 Grp 2 8 GND
7 Ins Ret 7 GND 7 GND 9 LED B 9 Grp GND SE 9 U-
8 Dir-Out 8 Grp 2 8 GND 10 LED C 10 Grp 3 10 U-
9 LED 12B 9 Grp GND SE 9 U- 11 GND package 11 GND 11 U+
10 Dir-Out 10 Grp 3 10 U- 12 Mic + 12 Grp 4 12 U+
11 GND package 11 GND 11 U+ 13 Mic -
12 Ins Ret 12 Grp 4 12 U+ 14 R-
13 Ins Send 15 R+
14 GND 16 L-
15 Mic In - 17 L+
16 Mic In + 18 GND package
17 GND
18 LED 12C Connection to Connector-PCB Connection to Mono-PCB Connection to Mono-PCB
Connection to Connector-PCB Connection to Master-PCB Connection to Master-PCB
CN 8 circuit diagram number CN17 circuit diagram number CN18 circuit diagram number
357 418 / 2- 357 421 / 3- 357 421 / 3-
CN 8 circuit diagram number
357 414 / 2- Pin Assignment Pin Assignment Pin Assignment
1 FX 1 1 G1 Ins - Ret 1 G3 Ins Ret
Pin Assignment 2 FX GND SE 2 G1 Ins - Send 2 G3 Ins Send
1 FX 1 3 FX 2 3 Grp1 Out 3 Grp3 Out
2 FX GND SE 4 Mon 1 4 GND 4 GND
3 FX 2 5 Mon GND SE 5 G2 Ins Ret 5 G4 Ins Ret
4 Mon 1 6 Mon 2 6 G2 Ins Send 6 G4 Ins Send
5 Mon GND SE 7 Aux 1 Pre 7 Grp2 Out 7 Grp4 Out
6 Mon 2 8 Aux 1 Post 8 GND 8 GND
7 Aux 1 Pre 9 Aux GND SE
8 Aux 1 Post 10 Aux 2 Pre
9 Aux GND SE 11 Aux 2 Post
10 Aux 2 Pre 12 not connected
11 Aux 2 Post
12 not connected Connection to Mono-PCB Connection to Connector-PCB Connection to Connector-PCB
Connection to Master-PCB
MIDAS Venice Pin-Assignments Page 2 / 3
Connector-PCB 86269 Stereo- / Master - PCB 82230
CN 2 circuit diagram number CN 9 circuit diagram number CN19 circuit diagram number CN20 circuit diagram number CN21 circuit diagram number
357 423 / 2- CN 9 357 424 / 2- CN19A 357 419 / 3- 357 421 / 3- 357 421 / 3-
CN9A 357 424 / 2- CN19B 357 420 / 3-
Pin Assignment Pin Assignment Pin Assignment Pin Assignment Pin Assignment
1 48V + LED 1 U1 + 1 Mon GND SE 1 Send Master Insert L Ret 1 GND
2 Relays 2 GND 2 Mon 2 2 Send Master Insert L Send 2 U+
3 48V + 3 U1 - 3 Mon 1 3 Send Master L Out 3 GND
4 48V + 4 48V + 4 GND 4 GND A12 4 U+
5 GND 5 T-Aux 1 5 GND A12 5 GND
6 VSS + 6 T-Aux 2 6 Send Master R Out 6 U-
7 16V - 7 Send Master Insert R Send 7 GND
8 16V - 8 Send Master Insert R Ret 8 U-
9 16V + 9 Mute
10 16V + 10 MB L Out
11 GND A12
Connection to Power-Supply-PCB Connection to Extension-PCB 12 MB Rout
Connection among Master-PCB Connection to Connector-PCB Connection to Power Supply-PCB
CN1A-D Connection to Mono-PCB
CN1E-F Connection to Stereo-PCB
CN17 Connection to Master-PCB
CN18 Connection to Master-PCB CN22 circuit diagram number CN24 circuit diagram number CN25 circuit diagram number
CN20 Connection to Master-PCB 357 419 / 3- 357 420 / 3- 357 420 / 3-
CN24 Connection to Master-PCB
CN25 Connection to Master-PCB Pin Assignment Pin Assignment Pin Assignment
1 48V + 1 Aux1 Ret L + 1 Speak L
2 48V + 2 Aux1 Ret L - 2 Speak R
Extension-PCB Nr. 86270 3 Lamp - 3 Aux1 Ret R + 3 GND
4 Lamp - 4 Aux1 Ret R - 4 FX1 Ret R +
circuit diagram number 5 Lamp + 5 GND 5 FX1 Ret R -
CN1A-D 357 426 / 2- 6 Lamp+ 6 Aux2 Ret L + 6 FX1 Ret L +
Connection to Mono-PCB 7 Aux2 Ret L - 7 FX1 Ret L -
8 Aux2 Ret R + 8 GND
CN9 357 426 / 2- 9 Aux2 Ret R - 9 FX2 Ret R +
Connection to Connector-PCB 10 GND 10 FX2 Ret R -
11 Tape In L 11 FX2 Ret L +
12 Tape In R 12 FX2 Ret L -
Connection to Power Supply-PCB Connection to Connector-PCB Connection to Connector-PCB
MIDAS Venice Pin-Assignments Page 3 / 3
Stereo- / Master - PCB 82230
CN26 circuit diagram number
357 421 / 3-
Pin Assignment
1 FX1 Out
2 FX2 Out
3 FX GND
4 AUX2 Out
5 GND A13
6 AUX1 Out
7 GND A13
8 Mon 1 Out
9 GND A13
10 Mon 2 Out
Connection to Connector-PCB
Power Supply PCB 85277/1
CN 2 circuit diagram number CN21 circuit diagram number CN22 circuit diagram number
357 412 / 3- 357 412 / 3- 357 412 / 3-
Pin Assignment Pin Assignment Pin Assignment
1 48V + LED 1 GND 1 48V +
2 Relays 2 U+ 2 48V +
3 48V + 3 GND 3 Lamp -
4 48V + 4 U+ 4 Lamp -
5 GND 5 GND 5 Lamp +
6 VSS + 6 U- 6 Lamp+
7 16V - 7 GND
8 16V - 8 U-
9 16V +
10 16V +
Connection to Connector-PCB Connection to Master-PCB Connection to Master-PCB
VENICE 160 1/4
Ersatzteilliste - Bill of Materials
173031 VENICE 160 100V
173032 VENICE 160 120V
173033 VENICE 160 220V
173019 VENICE 160 230V
173034 VENICE 160 240V
Pos. Nr. Best. Nr.
Ref. No. Part No. Bezeichnung Qty Description
