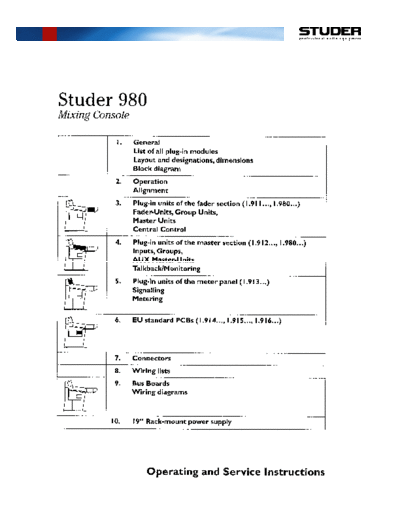

Image preview - the first page of the document
>> Download 980_Op_Serv documenatation <<
Text preview - extract from the document
OnAir 2000 Digital Mixing Console
Correlator 30 LED, 2-CH 1.913.109.81 ( 0) / 4-CH 1.913.100.81 ( 0) Correlator 30 LED, 2-CH 1.913.109.81 ( 0) Page: 1 of 1
Idx. Pos. Part No. Qty. Type/Val. Description Idx. Pos. Part No. Qty. Type/Val. Description
0 MP 9 1.913.109.04 1 pce STUDER-NR.-ETIKETTE 10 * 20
0 MP 11 1.913.010.41 1 pce FRONTSCHILD 1E 30LED CORR.2CH
0 MP 12 1.913.010.40 1 pce TRAEGER 1E 30LED CORRELATOR
0 MP 13 21.99.0175 2 pcs M3*6 S-Schraube IS A2 sw oxydiert
0 MP 14 1.913.136.03 1 pce FENSTER BUS SELECTOR +VU
0 MP 15 1.913.212.93 1 pce LL KORRELATOR 2CH
0 MP 16 1.913.109.93 1 pce LL CORRELATOR 30 LED
0 MP 17 1.913.212.00 1 pce CORRELATOR BOARD ,A
0 MP 18 24.16.3023 2 pcs 2.3 Wellensicherung
0 MP 19 1.010.022.21 2 pcs M3*8 L-Schraube IS sw spezial
0 MP 20 21.01.2353 3 pcs M3*5 S - Schraube Zn bl chr
0 MP 21 1.913.095.00 1 pce CORRELATOR 30LED 2CH ,A
End of List
Comments:
twisted
Correlator 30 LED, 4-CH 1.913.100.81 ( 0) Page: 1 of 1
Idx. Pos. Part No. Qty. Type/Val. Description Idx. Pos. Part No. Qty. Type/Val. Description
0 MP 9 1.913.100.04 1 pce STUDER-NR.-ETIKETTE 10 * 20
0 MP 10 1.010.031.22 1 pce 1/4*40NS Abdeck-Mutter Ms Ni
0 MP 11 1.913.010.42 1 pce FRONTSCHILD 1E 30LED CORR.4CH
0 MP 12 1.913.010.40 1 pce TRAEGER 1E 30LED CORRELATOR
0 MP 13 21.99.0175 2 pcs M3*6 S-Schraube IS A2 sw oxydiert
0 MP 14 1.913.136.03 1 pce FENSTER BUS SELECTOR +VU
0 MP 15 1.913.211.93 1 pce LL KORRELATOR 4CH
0 MP 16 1.913.109.93 1 pce LL CORRELATOR 30 LED
0 MP 17 1.913.212.00 1 pce CORRELATOR BOARD ,A
0 MP 18 24.16.3023 2 pcs 2.3 Wellensicherung
0 MP 19 1.010.022.21 2 pcs M3*8 L-Schraube IS sw spezial
0 MP 20 21.01.2353 3 pcs M3*5 S - Schraube Zn bl chr
0 MP 21 1.913.095.00 1 pce CORRELATOR 30LED 2CH ,A
0 S1 55.01.0115 1 pce 4*on-none-on Kippschalter Ag
twisted
End of List
Comments:
Toggle
Switch S1
Date printed: 12.09.06 Section 1
OnAir 2000 Digital Mixing Console
Correlator PCB 1.913.212.00 ( 4)
Date printed: 12.09.06 Section 1
OnAir 2000 Digital Mixing Console
Correlator PCB 1.913.212.00 ( 0) Page: 1 of 1
Idx. Pos. Part No. Qty. Type/Val. Description Idx. Pos. Part No. Qty. Type/Val. Description
0 C1 59.34.1120 12p CER 63V, 5%, NP 0
0 C2 59.02.5683 68n MPC, 5%, 250V
0 C3 59.12.7752 7n5 PS 63V 1%
0 C4 59.22.5101 100u EL 25V 20% RM5
0 C5 59.12.7392 3n9 PS 63V 1%
0 C6 59.34.4680 68p CER 63V, 5%, N750
0 C7 59.22.5101 100u EL 25V 20% RM5
0 C8 59.34.1120 12p CER 63V, 5%, NP 0
0 C9 59.02.5683 68n MPC, 5%, 250V
0 C 10 59.12.7752 7n5 PS 63V 1%
0 C 11 59.22.5101 100u EL 25V 20% RM5
0 C 12 59.12.7392 3n9 PS 63V 1%
0 C 13 59.34.4680 68p CER 63V, 5%, N750
0 C 14 59.22.5101 100u EL 25V 20% RM5
0 C 15 59.22.5101 100u EL 25V 20% RM5
0 C 16 59.26.1220 22u SAL 10V 20%
0 C 17 59.26.1220 22u SAL 10V 20%
0 C 18 59.22.4221 220u EL 16V 20% RM5
0 C 19 59.22.4221 220u EL 16V 20% RM5
0 D1 50.04.0125 1N4448 75V, 150mA, 4ns, DO-35
0 D2 50.04.0125 1N4448 75V, 150mA, 4ns, DO-35
0 D3 50.04.0125 1N4448 75V, 150mA, 4ns, DO-35
0 D4 50.04.0125 1N4448 75V, 150mA, 4ns, DO-35
0 IC 1 50.09.0107 4559 Dual Op-Amp
0 IC 2 50.09.0107 4559 Dual Op-Amp
0 IC 3 50.05.0122 1496 Multiplier TO100
0 MP 1 1.913.210.11 1 pcs CORRELATOR BOARD
0 MP 2 54.02.0471 25 pcs Stift d 1.5 * 5.5 l◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
