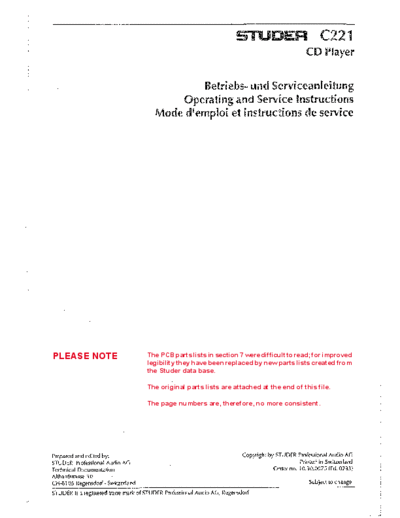

Image preview - the first page of the document
>> Download Studer_CD221_Op_Serv documenatation <<
Text preview - extract from the document
Please Note the PCB parts lists in section 7 were difficult to read; for improved
legibility they have been replaced by new parts lists created from
the studer data base.
the original parts lists are attached at the end of this file.
the page numbers are, therefore, no more consistent.
D221
EXTENDER BOARD 1.747.207.00 ( 0) Page: 1 of 1
Idx. Pos. Part No. Qty. Type/Val. Description Idx. Pos. Part No. Qty. Type/Val. Description
0 J1 C054.990217 1 pce 14p Flex-ZIF gerade, PCB
0 MP 1 A747.020711 1 pce EXTENDER PCB
0 W1 A023.039101 1 pce FLACHKABEL 14 POL. 0.09M
End of List
Comments:
(00) 15.01.90 PKE
Date printed: 27.10.2010
C221
EXTENDER BOARD 1.747.208.00/1.747.209.00 ( 1) Page: 1 of 1
Idx. Pos. Part No. Qty. Type/Val. Description Idx. Pos. Part No. Qty. Type/Val. Description
0 J1 C054.990217 1 pce 14p Flex-ZIF gerade, PCB
0 MP 1 A747.020811 1 pce EXTENDER PCB
0 MP 2 A747.020802 1 pce NR-ETIKETTE 5 X 20
0 MP 3 A747.020901 1 pce NR-ETIKETTE 5 X 20
1 S1 C055.150140 1 pce S 1 TASTE, 1*A,IMPULS,1.0 N
0 W1 A023.039101 1 pce FLACHKABEL 14 POL. 0.09M
0 W2 A747.020801 1 pce CABEL-ENDSWITCH
End of List
Comments:
(00) 25.09.92 PS
(01) 04.05.93 S1:55.15.0138->55.15.0140;
Date printed: 27.10.2010
C221
SERVO BOARD C221 1.747.515.20 ( 1) Page: 1 of 2
Idx. Pos. Part No. Qty. Type/Val. Description Idx. Pos. Part No. Qty. Type/Val. Description
0 IC 4 C050.090115 1 pce 2720 IC L 2720 ,A
1 C1 not used 0
0 IC 5 C050.140134 1 pce 4416-15N IC HY 53C464 LS 12 ,A
0 C2 C059.224222 1 pce 2m2 EL 16V 20% Tripod
0 IC 6 C050.090115 1 pce 2720 IC L 2720 ,A
0 C3 C059.060104 1 pce 100n PETP, 63V, 10%, RM5
0 IC 7 C050.090107 1 pce 4559 Dual Op-Amp
0 C4 C059.060104 1 pce 100n PETP, 63V, 10%, RM5
0 IC 8 C050.620500 1 pce SAA7310 Decoder
0 C5 C059.226222 1 pce 2m2 EL 40V 20% Tripod
0 IC 9 C050.130121 1 pce TDA8808 Photodiode signal processor
1 C6 not used 0
0 IC 10 C050.130122 1 pce TDA8809 Radial errorsignal processor
1 C7 not used 0
0 J1 C054.145514 1 pce 14p PCB-Buchse gerade
0 C8 C059.060104 1 pce 100n PETP, 63V, 10%, RM5
0 J2 C054.110330 1 pce Power Jumper
0 C9 C059.226222 1 pce 2m2 EL 40V 20% Tripod
0 J3 C054.110330 1 pce Power Jumper
1 C 10 not used 0
0 J4 C054.110330 1 pce Power Jumper
0 C 11 C059.060104 1 pce 100n PETP, 63V, 10%, RM5
0 MP 1 A747.020012 1 pce SERVO PCB H2
0 C 12 C059.060104 1 pce 100n PETP, 63V, 10%, RM5
0 MP 2 A747.051501 1 pce NR-ETIKETTE 5 * 20
1 C 13 not used 0
0 MP 3 C043.010108 1 pce Label ESE-Warnschild
0 C 14 C059.224103 1 pce 10m EL 16V 20% Tripod
0 MP 4 A747.020001 1 pce KUEHLBLECH SERVO BOARD
0 C 15 C059.060222 1 pce 2n2 PETP, 63V, 10%, RM5
0 MP 5 A747.020003 1 pce THERMOPLASTIK
0 C 16 C059.228229 1 pce 2u2 EL 50V 20% RM5
0 MP 6 C021.480355 2 pcs M3*8 Z-Schr Torx, taptite, A2
0 C 17 C059.342470 1 pce 47p CER 63V, 5%, N150
0 MP 7 C050.202003 4 pcs Montageclip zu TO 220, N/ISOL.
0 C 18 not used 0
0 MP 8 C053.030142 2 pcs XF 5 * 20, -KLAMMER
0 C 19 C059.060474 1 pce 470n PETP, 63V, 10%, RM5
0 MP 9 C051.990128 1 pce SICHERUNGS-ABDECKUNG
0 C 20 C059.060104 1 pce 100n PETP, 63V, 10%, RM5
0 MP 10 C054.020320 29 pcs 1p PCB-Flachst 2.8*0.8, gerade
0 C 21 C059.223101 1 pce 100u EL 10V 20% RM5
0 MP 11 A747.020094 1 pce KL SERVO BOARD H2
0 C 22 C059.342220 1 pce 22p CER 63V, 5%, N150
0 MP 12 C043.010104 1 pce WARNSCHILD (BLITZ)
0 C 23 C059.223470 1 pce 47u EL 10V 20% RM5
0 MP 13 C024.162030 1 pce 3.2/6.0 F◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
