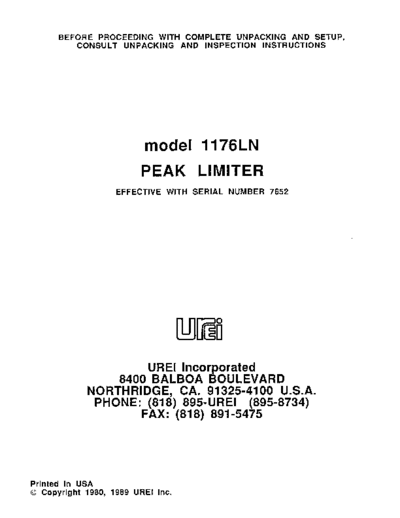

Image preview - the first page of the document



>> Download UREI-1176LNmanual documenatation <<

Text preview - extract from the document

UREI MODEL 1176 PEAK LIMITER REVISIONS LOG

SERIAL NUMBER      "REVISION"

101 - 216          REV A
217 - 1078         REV B
1079 - 1238        REV C
1239 - 2331        REV D
2322 - 2610        REV E
2611 - 7052        REV F
7053 - 7651        REV G
7652 onwards       REV H
                   REV J
                   REV K
                                                                                                                                                                     2N5457 / 5458 / 5459 / MMBF5457 / 5458 / 5459
                                        2N5457                                                        MMBF5457
                                        2N5458                                                        MMBF5458
                                        2N5459                                                        MMBF5459

                                                                                                                G



                                                                                                                                             S
                            G                            TO-92
                                S
                                    D                                                                    SOT-23                  D         NOTE: Source & Drain
                                                                                                  Mark: 6D / 61S / 6L                       are interchangeable




        N-Channel General Purpose Amplifier
        This device is a low level audio amplifier and switching transistors,
        and can be used for analog switching applications. Sourced from
        Process 55.


        Absolute Maximum Ratings*                                             TA = 25
