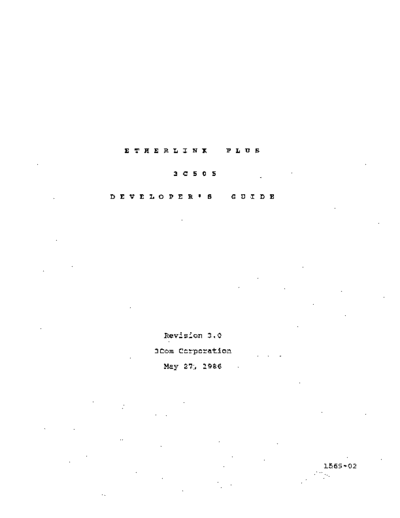

Image preview - the first page of the document
3c505_Etherlink_Plus_Developers_Guide_May86


>> Download 3c505_Etherlink_Plus_Developers_Guide_May86 documenatation <<

Text preview - extract from the document
  E THE R LIN X         P L U S


          3 C 5 0 5


D EVE LOP E R   I   S    G U IDE




        Revision 3.0
       3Com Corporation
        May 2.1, 1986
                             PREFACE
This document is intended for use by sophisticated software
engineers who will either be writing application software that
will talk to the 3C505, or software that will actually reside on
the card.    The user is expected to have a strong background in
microcomputer systems.    It is recommended that the user browse
through the Intel 80186 Data Sheet and the Intel Lan Components
User's Manual before beginning (they are available through
Intel).
The manual is divided into the following chapters:
CH1~PTER   1   HARDWARE EXTERNAL REFERENCE SPECIFICATION (ERS)
               Provides a description of the 3C505 architecture,
               system resources and functional operation.
CHAPTER 2      HARDWARE INTERFACE SPECIFICATION
               Describes   the programmable registers     used    to
               control,    configure, and communicate     with   the
               3C505.
CHAPTER 3      COMMAND INTERFACE SPECIFICATION
               Describes the function and use of the command
               level interface software supplied with the card.
APPENDIX A     80186 PERIPHERAL CONTROL BLOCK PROGRAMMING
               Provides the values used in the 3C505 firmware     to
               configure the 80186 internal resources.
APPENDIX B     82586 CONFIGURATION
               Provides the values used by the 3C505 firmware to
               configure the 82586.
APPENDIX C     3CSOS DIAGNOSTIC
               Describes the operation of the 3C505       diagnostic
               utility program.
               3D DEBUGGER
               Describes a host program that uses a special debug
               mode of the 3C505 to assist in debugging programs
               running on the card.
APPENDIX E     3C50S DEVELOPER'S SOFTWARE DISKETTE
               Describes the contents of the         diskette    that
               accompanies the developer's kit.
APPENDIX F     REVISION 2.0 ROM
               Describes changes made in Revision 2.0 ROM code.

APPENDIX G     REVISION 3.0 ROM
               Describes changes made in Revision 3.0 ROM code.
                          TABLE OF CONTENTS
                                                        Page #

CHAPTER 1 - HARDWARE EXTERNAL REFERENCE SPECIFICATION
     1.0    Introduction                                  1
     1.1    Resources                                     1
     1.2    Architecture                                  1
     1.3    Address Maps                                  3
            1.3.1   Adapter I/O map                       3
            1.3.2   Adapter memory map                    3
            1.3.3   Host I/O map                          3
     1.4    80186 Microprocessor                          4
     1.5    82586 Ethernet Coprocessor                    4
     1.6    Network Interface                             5
            1.6.1 82586 Serial Interface                  5
            1.6.2 8023 Manchester Converter               5
            1.6.3 Transceiver                             5
    1.7     Adapter Firmware ROM                          6
    1.S     Adapter RAM                                   6
    1.9     Host-Adapter Interface                        9
            1.9.1 Command Register                        9
            1.9.2 Data Register                           9
            1~9.3  Data Register configuration           10
            1.9.4 DMA Transfers                          11
            1.9.5 Status Flags                           12
     1.10   Adapter Interrupts                           13
            1.10.1 Internal Interrupts                   13
            1.10.2 External Interrupts                   13
     1.11   Host Interrupts                              14
     1.12   Resetting the Adapter                        15
     1.13   Ethernet Address                             15
     1.14   LED Indicators                               15
     1.15   Host ROM                                     16


CHAPTER 2 - HARDWARE INTERFACE SPECIFICATION

     2.0    Introduction                                 17
     2.1    Conunand Register                            1S
     2.2    Data Register                                18
     2.3    Host Control Register                        19
     2.4    Host status Register                         21
     2.5    Host Aux DMA Register                        23
     2.6    Adapter Control Register                     23
     2.7    Adapter status Register                      25
CHAPTER 3 - COMMAND INTERFACE SPECIFICATION
     3.0    Introduction                                      28
     3.1    Primary Command Block structure                   28
            3.1.1 status Flag Usage for PCB Transfer          30
            3.1.2 Host to Adapter Request                     30
            3.1.3 Adapter to Host Request or Response         31
     3.2    PCB Commands                                      32
            3.2.1 Host to 3C505 PCB Formats                   32
            3.2.2 3C505 to Host PCB Formats                   37
     3.3    System ROM Utilities                              41
            3.3.1 Host I/O support: INT SOH                   41
            3.3.2, Network I/O S~
