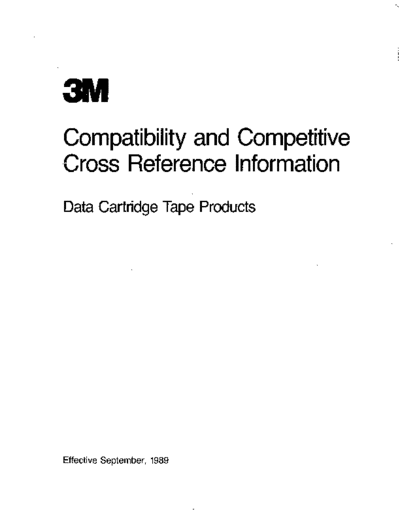

Image preview - the first page of the document
84-9801-6694-0_3M_Data_Cartridge_Compatibility_Sep89


>> Download 84-9801-6694-0_3M_Data_Cartridge_Compatibility_Sep89 documenatation <<

Text preview - extract from the document
3M
Compatibility and Competitive
Cross Reference Information
Data Cartridge Tape Products




Effective September, 1989
                                       Index



3M Data Cartridge Tape Characteristics ................................... Pg. 1

Formatted Data Cartridge Time Savings Chart .............................. Pg. 1

Data Cartridge Drive Compatibility Cross Reference ...................... Pg. 2-11

Formatted Data Cartridge Drive Compatibility Cross Reference ........... Pg. 12-13

Data Cartridge Competitive Cross Reference .............................. Pg. 14
3M Data Cartridge Tape Characteristics
                                                    Nominal
                    ANSI                            Capacity                                                                                                       Diameter of
                    Minimum            Nominal      with a                                                                                                         LP,EW,
                    Tape               Tape         Typical                    Recording                  Nominal                                                  BOT, EOT
                    Length             Width        Format1                    Densities       Tracks     Coercivity     Cartridge                   Tape          Holes4-5
 Product            (Feet)             (Inches)     (Mbyte)      Formatted     FTPl 1 2
                                                                                     -         on Tape1   (Oersteds)     Dimensions (Inches)         Parkec:t3     (Inches)
 DC looA            1406               0.150        .67          No             3,200           2         310            2.415 X 3.188   X   0.470   Left (SOT)    0.046
 DC 1000            185                0.150        20           No            12,500          12         550            2.415 X 3.188   X   0.470   Left (SOT)    0.046
 DC 1000 ALPHAMAr"  185                0.150        20           Yes?          10,000          12         550            2.415 X 3.188   X   0.470   Left (SOT)    0.046
 DC 1000 DELTAMAr"  185                0.150        10           Ye~            6,400           8         550            2.415 X 3.188   X   0.470   Left (SOT)    0.046
 DC 2000            205                0.250        40           No            12,500          24         550            2.415 X 3.188   X   0.570   Left (SOT)    0.046
 DC 2000 GAMMAMAr" 205                 0.250        40           Yes 9         12,500          24         550            2.415 X 3.188   X   0.570   Left (SOT)    0.046
 DC 2000 KAPPAMAr" 205                 0.250        40           Yes 10        10,000          20         550            2.415 X 3.188   X   0.570   Left (SOT)    0.046
 DC 2000 THETAMAr"  205                0.250        40           Yes 11        10,000          20         550            2.415 X 3.188   X   0.570   Left (SOT)    0.046
 DC 2080            205                0.250        80           No            15,000          32         550            2.415 X 3.188   X   0.570   Left (BOT)    0.046
 DC 2080 RHOMAr"    205                0.250        80           Yes 12        11,600          32         550            2.415 X 3.188   X   0.570   Right (EOT)   0.046
 DC 2110 NUMAT      205                0.250        110          Yes 13        20,000          32         550            2.415 X 3.188   X   0.570   Left (BOT)    0.046
 DC 300A            300                0.250        2.9          No             3,200           4         310            4 X 6 X 0.665               Right (SOT)   0.0235
 DC 300XUP          450                0.250        45           No             3,200-10,000    9         310            4 X 6 X 0.665               Right (SOT)   0.046
 DC 600A            620                0.250        60           No            12,500          16         550            4 X 6 X 0.665               Right (SOT)   0.046
 DC 615A            150                0.250        15           No            12,500          16         550            4 X 6 X 0.665               Right (SOT)   0.046
 DC 600HC 10TAMAT'" 620                0.250        67           Yes 14        10,000          16         550            4 X 6 X 0.665               Left (EOT)    0.046
 DC 615HC 10TAMAT'" 150                0.250        16           Yes 14        10,000          16         550            4 X 6 X 0.665               Left (EOT)    0.046
 DC 6OOHW14         620                0.250        60           No            10,000          11         550            4 X 6 X 0.665               Right (SOT)   0.046
 DC 6150            620                0.250        150          No            12,500          32         550            4 X 6 X 0.665               Right (SOT)   0.046
 DC 6037            150                0.250        37           No            12,500          32         550            4 X 6 X 0.665               Right (SOT)   0.046
 DC 6150 ZETA MAr"  620                0.250        134          Yes 16        10,000          32         550            4 X 6 X 0.665               Left (EOT)    0.046
 DCT 6320           620                0.250        320          No            20,000          26         550            4 x 6 x 0.665               Right (BOT)   0.046

 1Values are drive dependent.
 2FTPI = Flux Transitions Per Inch.
 3Position of tape when cartridge is new: SOT = Seginning Of Tape; EOT = End Of Tape.
 4LP = Load Point; EW = Early Warning.
 5LP & EW = .023 in. (.584mm); SOT & EOT = .046 in. (1.168mm).
 63M specification only.
 ?Cartridges are formatted for use on specific systems such as Irwin, Data General, NCR, Olivetti, and Zenith.
 8Cartridges are formatted for use on specific systems such as Irwin.
 9Cartridges are formatted for use on specific systems such as OIC-l00, ADIC, Apple, Mirror, and Seagate.
10Cartridges are formatted for use on specific systems such as Irwin and Olivetti.
11Cartridges are formatted for use on specific systems such as OIC-40, Mountain, Archive, Alloy, CMS, and Wangtek.
12Cartridges are specifically designed by use on specific systems such as ISM PS/2
