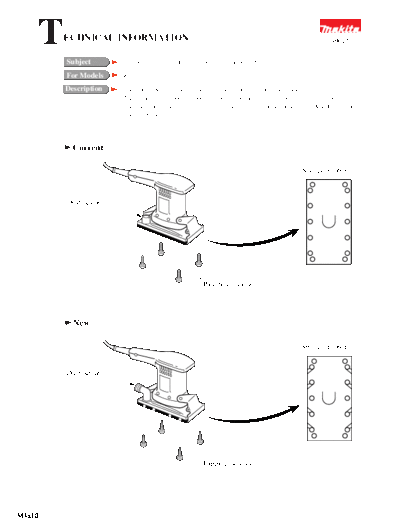

T ECHNICAL INFORMATION 49615
Subject Change on base and addition of O-ring 16 and joint 20
For Models 9036
Description 1.The dust spout will be changed in shape as shown in the figures below.
2.The holes in the sponge rubber will be changed in shape as shown in the figures below.
3.The sponge rubber securing screws will be changed from pan head screws M4xl0 to tapping
screws CT4x12.
Current
Sponge rubber
Dust spout
Pan head screws
New
Sponge rubber
Dust spout
Tapping screws
M4x12
M4x10
4.For France, Reunion, Algeria, Netherlands, Germany, Spain, Italy, Greece, Austria, Norway, Sweden, Finland and
U.K. only.
O-ring 16 and joint 20 will be added as standard equipment. They are for connecting to vacuum cleaners made by
European manufacturers such as Bosch, Metabo, etc.
Note
The O-rings 16 are factory-installed on the tool.
Joint 20
O-rings 16
Interchangeability(I/C)
Item No. Current part Q'ty I/C New part Q'ty
17 Base assembly Base assembly
1 Yes 1
122442-9 122442-9
Sponge rubber Sponge rubber 1 See the note 1 & 2
17 1 Yes
423169-7 423272-4 below.
Pan head screw M4xl0 Tapping screwCT4x12 See the note 2 below.
17 4 No 4
911113-1 266026-4
O-ring 16 2
E05
213223-3
Joint 20
E05 1
415611-2
Note
1.When you wish to connect this sander to a vacuum cleaner, always use the new type sponge rubber.
2.The sponge rubber and pan head screw M4xl0/tapping screw CT4x12 are constituent parts of the base assembly.
Implementation
From serial No. 120955E
