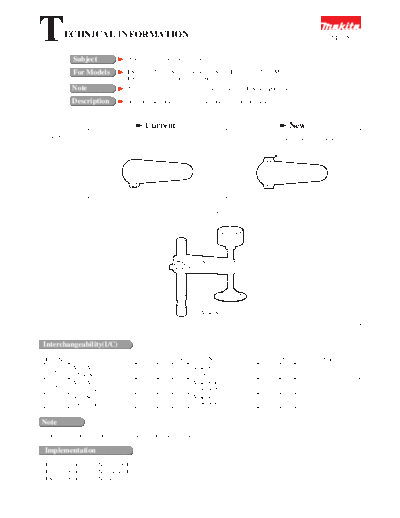

Image preview - the first page of the document
>> Download 51235-ww-1 documenatation <<
Text preview - extract from the document
T ECHNICAL INFORMATION 51235
Subject Addition of tapped hole on vise arm
For Models LS1011 (255mm Slide Compound Saw), LS1030 (255mm Miter Saw) and
LS 1211 (305mm Slide Compound Saw)
Note This information applies to all countries except U.S.A and Canada.
Description As illustrated below, vise arm has been changed to fix thumb screw from either side of vise
arm.
Current New
Vise Arm Tapped hole (M6) is added.
Vise Arm
Thumb screw
Vise Ass'y
Interchangeability(I/C)
Item No. Current part Q'ty I/C New part Q'ty Note
Vise Ass'y Vise Ass'y
95 1 <= 1
122468-1 122536-0
Vise Arm Vise Arm
95 1 <= 1
316177-4 316938-2
Vise Set Vise Set
1 <= 1
192117-4 192625-5
Note
Interchangeability mark; <= means that the new part can be substituted for the current.
Implementation
LS1011: From serial No. 171682E
LS1030: From serial No. 342463E
LS1211: From serial No. 9312E
