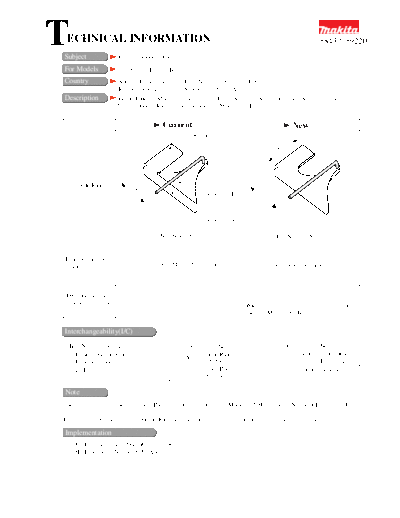

Image preview - the first page of the document
>> Download 58430-WW-1 documenatation <<Text preview - extract from the documentTECHNICAL INFORMATION
Subject Change of Guide Rule
58430, 59220
For Models 1923B, 1923H, 1911B
Country Austria, France, Germany, Italy, Netherlands, Spain, U.K.,
Reunion, Russia, Sweden, Switzerland, South Africa
Description Guide Rule for Models 1923B and 1923H has been changed as illustrated below for standardization.
The new Guide Rule can be also used for Model 1911B.
Current New
protrusion
L
Guide Rule 11
0m 12
m component B 0m
m
component A
(Part No.164432-6) (Part No.165259-7)
Plate of Guide Rule
consists of; components A and B welded together. one-piece steel plate
Distance between
110mm 120mm
protrusion and rod Widened by 10mm so that the new can be
used for Model 1911B.
Interchangeability(I/C)
Item No. Current part Q'ty I/C New part Q'ty Note
1923B; 401 Guide Rule Guide Rule standard equipment
1 Yes 1
1923H; 404 164432-6 165259-7 for 1923B, 1923H
1911B; F22 Guide Rule optional accessory
1
165259-7 for 1911B
Note
The length of "L" of the new Guide Rule is 95.0mm, while that of Model 1923H with serial No.24850E to 257837E
is 123.0mm.
However, between the two new Guide Rules there is interchangeability and no difference in performance.
Implementation
1923B : From serial No.958490E (Sep.,1999)
1923H : From serial No.248580E (Apr.,1999)
