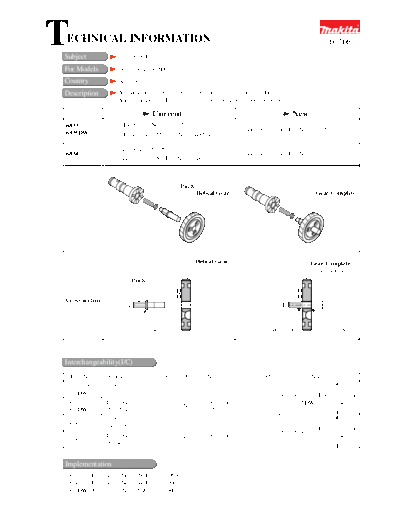

Image preview - the first page of the document
60266-WW-1


>> Download 60266-WW-1 documenatation <<

Text preview - extract from the document
T
ECHNICAL INFORMATION
Subject              Change on Helical Gear
                                                                                                          60266


For Models           6833, 6834, 6835D
Country              All countries

Description          As illustrated below, Pin 8 has been modified and joined to Helical Gear.
                     And consequently, Helical Gear has been replaced by Gear Complete;

                                     Current                                                New
6833                   Pin 8 (Part No.268032-5)
                                                                         Gear Complete (Part No.153275-1)
6835DW                 Helical Gear 55 (Part No.226485-4)

                       Pin 8 (Part No.268032-5)
6834                                                                     Gear Complete (Part No.152622-3)
                       Helical Gear 59 (Part No.226486-2)



                                                Pin 8
                                                        Helical Gear                                 Gear Complete




                                                        Helical Gear                               Gear Complete
                                                                                                     (includes Pin)
                           Pin 8


Cross section



                           with flange                                        without flange              stepped




Interchangeability(I/C)
  Item No.        Current part           Q'ty   I/C         New part             Q'ty              Note
6833: 038       Pin 8                     1
6835DW: 038     268032-5                                                                For 6833,  Interchangeable
6833: 039       Helical Gear 55                         Gear Complete                       6835DW      as a set
                                          1      No                               1
6835DW: 039     226485-4                                153275-1
                Pin 8
6834: 038                                 1
                268032-5                                                                             Interchangeable
                                                                                        For 6834
                Helical Gear 59           1      No     Gear Complete             1                       as a set
6834: 039
                226486-2                                152622-3


Implementation
6833  : From serial No.11297E (Dec.,1999)
6834  : From serial No.11541E (Jan.,2000)
6835DW : From serial No.3356E (Jan.,2000)
