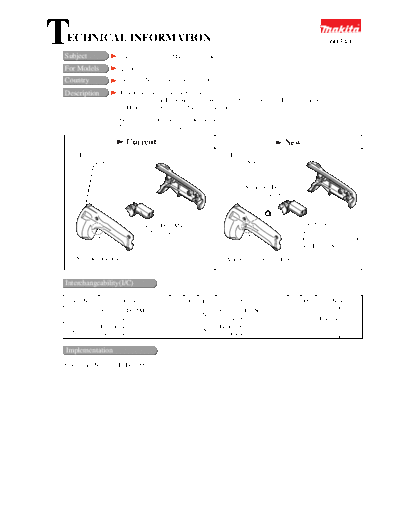

Image preview - the first page of the document
60349-WW-1


>> Download 60349-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject             Change of Switch and Handle Complete
                                                                                                          60349


For Models          4110C
Country             Germany, Netherlands, Spain, Sweden

Description         In order to conform to the European Standards;
                    1) Switch without Lock button has been replaced by the one with Lock-off button.
                    2) Handle has been changed to accept the new switch.
                    See the illustration below for detailed information.
                    The wiring remains unchanged.

                       Current                                                         New
     Handle Set                                                   Handle Set
     (181442-8)                                                   (181908-8)


                                                                           Switch C3D-15CS
                                                                              (651142-9)




                           Switch C3D-15MS                                                   *Dust Cover
                              (651131-4)                                                      (421225-7)
                                                                                             *A constituent part of the
                                                                                              new Handle Set
    No hole for Lock button                                     A hole for Lock-off button


Interchangeability(I/C)

  Item No.          Current part               Q'ty   I/C             New part                 Q'ty        Note
              Switch C3D-15MS                                Switch C3D-15CS
    071                                          1    No                                        1
              651131-4                                       651142-9                                 Interchangeable
              Handle Set                                     Handle Set                                    as a set
  066, 077                                       1    No                                        1
Note          181442-8                                       181908-8

Implementation
From serial No.17289E (Feb.,2001)
