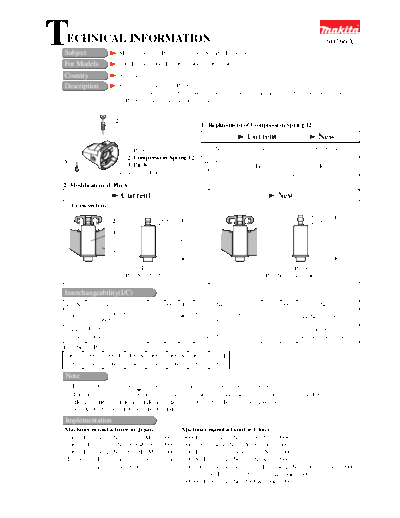

TECHNICAL INFORMATION
Subject                      Modifications of Parts Concerning Spindle Lock Function
                                                                                                               60766A

For Models                   9060L, 9067, 9067L, 9067S, 9069, 9069S, 9617, 9617L
Country                      All countries
Description                  For smoother action of Pin 8;
                             1) Compression Spring 8 has been replaced by the new one that has higher stretching power.
                             2) Pin 8 has been made longer as illustrated below.
                     1
                         2
                                                              1) Replacement of Compression Spring 12

                                                                               Current                      New
                               1. Pin Cap                     Part No.          233089-5                  233292-8
                               2. Compression Spring 12
3                              3. Pin 8                       Winding
                                                                                   Left                     Right
                             4 4. Gear Housing                direction

2) Modification of Pin 8
                             Current                                                        New
     Cross section
                     1
                     2                       5.5mm                                                        7.5mm
                     3
                                                     29mm                                                          31mm

                     4

                                     Pin 8                                                          Pin 8
                              (Part No.256452-5)                                       (Part No. remains unchanged.)

Interchangeability(I/C)
Item No.       Current part                     Q'ty I/C        New part                      Q'ty          Note
     002  Compression Spring 12                  1       Compression Spring 12                  1    See Note below.
          233089-5                                       233292-8
     See Pin 8                                       Yes
                                                         Pin 8                                       Part number
                                                 1                                              1
    below 256452-5                                       256452-5                                    remains unchanged.
Item No. of Pin 8
 9060L 9067 9067L 9067S                  9069   9069S      9617   9617L
  039    043      043 043                 043    043        007    007

Note
1) Interchangeability mark ;     means that the new part is substituted for the current.
2) The current Compression Spring 12 remains available as a replacement part for the following models :
   HR2410, HR2412, HR2413, HR2420, HR2431, 5901B, 5902B, 6830, 6831DW, 6832
   9015A, 9015B, 9015DB, 9016B, 9016DB
Implementation
Machines manufactured in Japan                       Machines manufactured in China
9067 : From serial No.28021E (May, 2000)             9060L : From serial No.1021K (Nov., 2000)
9067L : From serial No.38284E (Apr., 2000)           9067 : From serial No.23501K (June, 2000)
9069 : From serial No.109718E (May, 2000)            9067L : From initial production (Nov., 2000)
The others : From your order received by us          9067S : From serial No.2289K (Aug., 2000)
             in/after July,2000.                     9069 : Compression Spring 12 / From serial No.129075K (June, 2000)
                                                            Pin 8 / From serial No.128332K (June, 2000)
                                                     9069S : From serial No.35970K (June, 2000)
