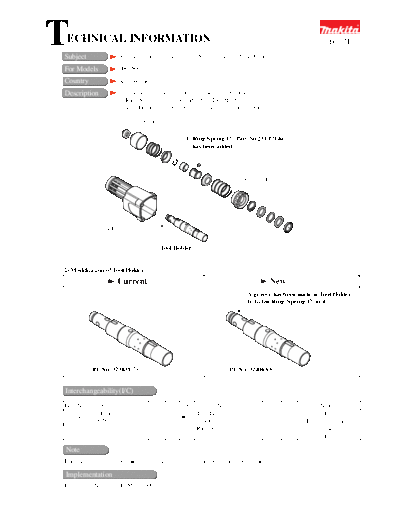

Image preview - the first page of the document
60771-WW-1


>> Download 60771-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject                Addition of Ring Spring 17 and Modification of Tool Holder
                                                                                                          60771


For Models             HK0500

Country                All countries
Description            In order to improve anti-dust construction of Chuck,
                       1) Ring Spring 17 has been added on Tool Holder.
                       2) Tool Holder has been modified so that it can accept Ring Spring 17.

                                 Chuck Cover

                                                  1) Ring Spring 17 (Part No.231979-6)
                                                     has been added.




                                                                           Change Ring




             Crank Housing Cover


                                        Tool Holder


2) Modification of Tool Holder
                      Current                                                         New
                                                                             A groove has been made in Tool Holder
                                                                             to fit the Ring Spring 17 on it.




            (Pt. No. 323839-7)                                      (Pt. No. 324063-5)


Interchangeability(I/C)
Item No.        Current part               Q'ty I/C           New part                     Q'ty        Note
           Tool Holder                      1          Tool Holder                          1
    019
           323839-7                                    324063-5                                   Interchangeable
                                                       Ring Spring 17                       1          as a set
    077
                                                       231979-6

Note
Interchangeability mark ;        means that the new part is substituted for the current.

Implementation
From serial No. 17774E (May, 2000)
