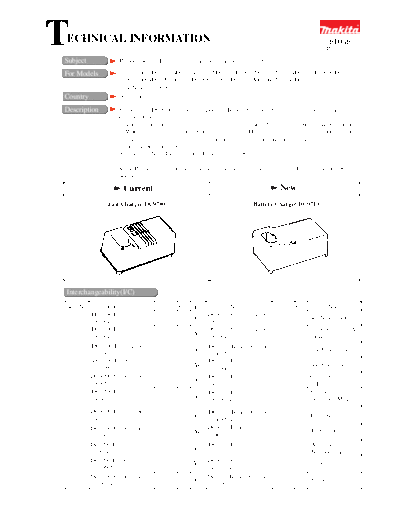

Image preview - the first page of the document
61046-WW-1


>> Download 61046-WW-1 documenatation <<

Text preview - extract from the document
T
ECHNICAL INFORMATION
Subject              Replacement of Fast Charger, Change of Plastic Carrying Case
                                                                                                           61046
                                                                                                        (Page 1 of 2)



For Models           6010D, 6012D, 6012HD, 6014D, 6015D, 6071D, 6072D, 6073D, 6074D, 6075D, 6092D,
                     6093D, 6094D, 6095D, 6710D, 6891D, 6911D, 6911HD, 6940D, 6942D
                     (See Note 1 on page 2.)
Country              All countries

Description         Fast Charger DC9700 has been replaced by Battery Charger DC9710. The features of the Battery
                    Charger DC9710 are as follows;
                    1) The charging time is always constant even if the input voltage (power source voltage) fluctuates.
                    2) When a full-charged battery is left on the charger DC9710, the charger starts "trickle charging"
                       (changing with very little amp.) to supplement battery fuel, keeping the battery always in
                       full-charged condition.
                    Also refer to New Tool Technical Information of DC9710.

                    Some Plastic Carrying Cases have been modified so that it can store the Battery Charger DC9710.
                    See next page.

                      Current                                                         New
                 Fast Charger DC9700                                       Battery Charger DC9710




Interchangeability(I/C)
Item No.        Current part                Q'ty I/C          New part                      Q'ty           Note
           DC9700 Fast Charger                    Yes DC9710 Battery Charger
                                             1                                                1    See Note 2 below
           192784-5                                   193075-7
           DC9700 Fast Charger                        DC9710 Battery Charger                       Saudi Arabia(220V),
                                             1    Yes                                         1
           192784-5                                   193084-6                                     Turkey
           DC9700 Fast Charger
                                             1    Yes DC9710 Battery Charger                  1    See Note 3 below
           192788-7                                   193075-7
           DC9700 Fast Charger                        DC9710 Battery Charger
                                             1    Yes 193084-6                                1    See Note 4 below
           192788-7
           DC9700 Fast Charger                                                                     Commonwealth
                                              1   Yes DC9710 Battery Charger                  1
           192822-3                                   193076-5                                     of Dominica
           DC9700 Fast Charger                        DC9710 Battery Charger                       Kuwait,
                                              1   Yes                                         1    Singapore, Malaysia
           192822-3                                   193085-4
           DC9700 Fast Charger
                                              1   Yes DC9710 Battery Charger                  1    Hong Kong
           192787-9                                   193085-4
           DC9700 Fast Charger                        DC9710 Battery Charger
                                              1   Yes                                         1    U. K. (240V)
           192785-3                                   193076-5
           DC9700 Fast Charger                        DC9710 Battery Charger                       Australia,
                                              1   Yes                                         1
           192824-9                                   193077-3                                     New Zealand
           DC9700 Fast Charger                1   Yes DC9710 Battery Charger                  1    Korea
           192789-5                                   193079-9
           DC9700 Fast Charger                        DC9710 Battery Charger                 1     China
                                             1    Yes
           192790-0                                   193078-1
                                                                                                              61046
                                                                                                             (Page 2 of 2)

 Item No.        Current part               Q'ty I/C          New part                   Q'ty            Note
            DC9700 Fast Charger              1    Yes DC9710 Battery Charger               1    Brazil (220V)
            192792-6                                  193081-2
            DC9700 Fast Charger              1        DC9710 Battery Charger               1    Taiwan
                                                  Yes
            192791-8                                  193080-4
            DC9700 Fast Charger                       DC9710 Battery Charger
                                             1    Yes                                      1    Saudi Arabia (127V)
            192782-9                                  193080-4
            DC9700 Fast Charger                         DC9710 Battery Charger             1    U.S.A., Panama,
                                             1    Yes
            192782-9                                    193083-8                                Mexico, Guam
    Plastic Carrying Case
    for Model 6093D, 6095D, 6891D, 6073D, 6074D, 6075D, 6092D, 6094D
Item No.        Current part           Q'ty I/C           New part                       Q'ty         Note
          Plastic Carrying Case                  Plastic Carrying Case
                                        1                                                 1
          824431-7                               824616-5
    for Model 6940D, 6942D
Item No.         Current part              Q'ty I/C              New part                Q'ty         Note
            Plastic Carrying Case                       Plastic Carrying Case
                                            1                                             1
            824432-5                                    824615-7
    for Model 6071D, 6072D
Item No.      Current part                 Q'ty I/C              New part                Q'ty         Note
         Plastic Carrying Case                          Plastic Carrying Case
                                            1                                             1
         824434-1                                       824614-9
    for Model 6014D
Item No.       Current part                Q'ty I/C              New part                Q'ty         Note
         Plastic Carrying Case                          Plastic Carrying Case
                                            1                                             1
         824387-4                                       824617-3
    for Model T220D
Item No.         Current part              Q'ty   I/C            New part                Q'ty         Note
         Plastic Carrying Case                          Plastic Carrying Case
                                            1                                             1
         182533-8                                       183298-5
    for Model 8411D
Item No.       Current part                Q'ty I/C              New part                Q'ty         Note
            Plastic Carrying Case                       Plastic Carrying Case
                                            1                                             1
            824394-7                                    824619-9
    for Model 6911HD, 6911D, 6913D
Item No.      Current part                 Q'ty I/C              New part                Q'ty         Note
            Plastic Carrying Case                       Plastic Carrying Case
                                            1                                             1
            824399-7                                    824620-4
    for Model 6010D, 6012D, 6012HD, 6015D, 6710D
Item No.      Current part            Q'ty I/C                   New part                Q'ty         Note
            Plastic Carrying Case                       Plastic Carrying Case
                                            1                                             1
            824446-4                                    824621-2
Interchangeability mark ;
The arrow      means that the new part is substituted for the current.

 Note
 Note 1: DC9710 is designed to charge 1.3Ah/7.2V and 1.3Ah/9.6V Nickel-Cadmium batteries.
         Therefore, the replacement of Fast Charger is not applied to "DWA" and DWB" models.
 Note 2: Austria, France, Germany, Italy, Netherlands, Russia, Spain, Sweden, Switzerland, Syria, Algeria,
         Canary Islands, Congo, Egypt, Gabon, Morocco, Reunion, South Africa
 Note 3: Brazil(220V), Chile, Guyana, Paraguay, Peru, Uruguay, Bhutan, North Korea, Tahiti, New Caledonia,
 Note 4: Indonesia, Thailand, Philippines, Viet Nam
Implementation
To be informed later
