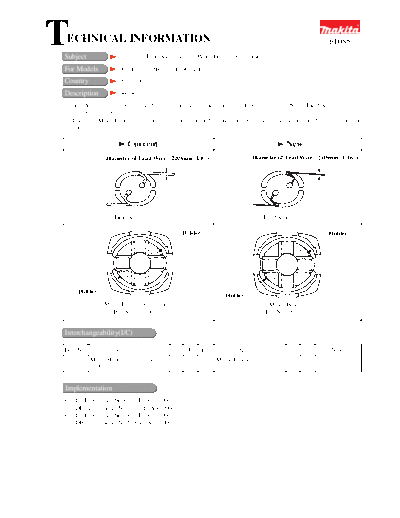

Image preview - the first page of the document
61085-WW-1


>> Download 61085-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject               Change of Field Assembly and Motor Housing Complete
                                                                                                          61085


For Models            9015B, 9015DB, 9016B, 9016DB
Country               All countries

Description           See below.

1. Field Assembly has been replaced by new one with thinner lead wires. However, the part No. of Field Assembly
   remains unchanged.
2. Holders of Motor Housing Complete have been modified as illustrated below so that the thinner lead wires can be held
   more firmly with them.

                         Current                                                         New
                Diameter of Lead Wire : 2.89mm (1/8")                      Diameter of Lead Wire : 2.05mm (1/16")




                    Field Assembly                                             Field Assembly

                                               Holder                                                    Holder




      Holder
                                                                Holder
                Motor Housing Complete                                           Motor Housing
                 (Part No. 159996-3)                                           (Part No. 183159-9)


Interchangeability(I/C)

Item No.          Current part                  Q'ty I/C            New part                    Q'ty       Note
           Motor Housing Complete                1    Yes   Motor Housing                        1
    018
           159996-3                                         183159-9


Implementation
9015B : From serial No.83651E (Apr.,2000)
9015DB : From serial No.13819E (Apr.,2000)
9016B : From serial No.19251E (Apr.,2000)
9016DB : From serial No.5682E (Apr.,2000)
