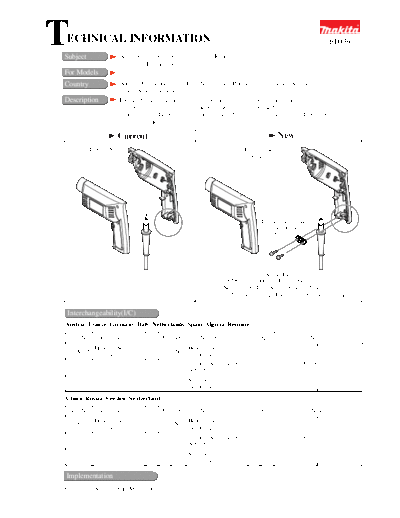

Text preview - extract from the document
T
ECHNICAL INFORMATION
Subject                 Addition of Tapping Screw and Strain Relief
                                                                                                              61039

                        Change of Housing Set
For Models              6501
Country                 Austria, France, Germany, Italy, Netherlands, Russia, Spain, Sweden, Switzerland,
                        China, Algeria, Reunion
Description             For standardization, the following modifications have been implemented;
                        1) Tapping Screw 4x18(2 pcs.) and Strain Relief have been added.
                        2) Accordingly, Housing Set has been replaced by the one that accepts the Tapping Screws and
                           the Strain Relief.

                        Current                                                          New
          Housing Set                                                      Housing Set
          (182328-9)                                                       (183067-4)




                                                                                  Tapping Screw 4x18
                                                                                      (265995-6)




                                                                                      Strain Relief
                                                                   (687063-9 for Austria, France, Germany,
                                                                    Netherlands, Italy, Spain, Algeria, Reunion)
                                                                   (687052-4 for China, Russia, Sweden, Switzerland)

 Interchangeability(I/C)
Austria, France, Germany, Italy, Netherlands, Spain, Algeria, Reunion

 Item No. Current part                 Q'ty I/C        New part                   Q'ty               Note
            Housing Set                            Housing Set                     1
 011&015                                 1    No
            182328-9                               183067-4
                                                   Tapping Screw 4x18                           Interchangeable
 020                                                                               2                 as a set
                                                   265995-6
                                                   Strain Relief
 021                                                                               1
                                                   687063-9
China, Russia, Sweden, Switzerland

 Item No. Current part                 Q'ty I/C        New part                   Q'ty                 Note
            Housing Set                            Housing Set                     1
 011&015                                 1   No
            182328-9                               183067-4
                                                   Tapping Screw 4x18                           Interchangeable
 020                                                                               2
                                                   265995-6                                          as a set
                                                   Strain Relief
 021                                                                               1
                                                   687052-4

Implementation
From Serial No.641220E (May., 2001)
