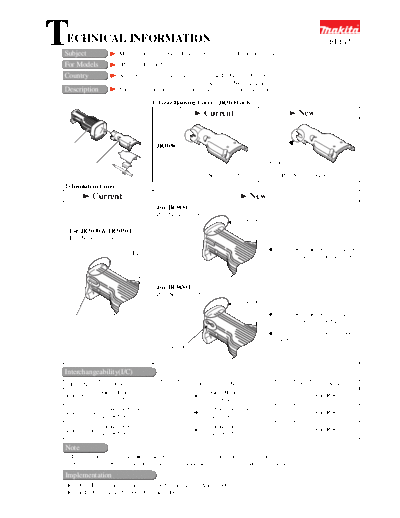

Image preview - the first page of the document
61142-WW-1


>> Download 61142-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject               Modifications of 1) Gear Housing Cover and 2) Insulation Cover
                                                                                                             61142

For Models            JR3030, JR3030T
Country               All countries except the following ; Canada, Mexico, U.S.A.
                                                           Australia, New Zealand
Description           The parts in the subject have been modified as illustrated below.

                                     1) Gear Housing Cover (JR3030 only)
                                                          Current                               New


  1)                                  JR3030

                                                                                   modified
           2)
                                                     Part No.317139-5                     Part No.317394-9
2) Insulation Cover
           Current                                                          New
                                      For JR3030
                                      Part No.421759-0
                                                                        modified
 For JR3030 & JR3030T
 Part No.421665-9
                                                                                      The flange at the top of Insulation
                            Flange
                                                                                      cover has been enlarged in height.



                                      For JR3030T
                                      Part No.421760-5
                                                                        modified

                                                                                      The flange at the top of Insulation
    Slit for hex. wrench                                                              cover has been enlarged in height.
                                                                                      The slit for hex. wrench has been
                                                                                      modified.
                                          modified



Interchangeability(I/C)
    Item No.         Current part              Q'ty I/C            New part                    Q'ty          Note
                Gear Housing Cover              1          Gear Housing Cover                    1
JR3030: 010                                                                                            For JR3030
                317139-5                                   317394-9
                Insulation Cover                           Insulation Cover
JR3030: 019                                     1                                                1     For JR3030
                421665-9                                   421759-0
                Insulation Cover                           Insulation Cover
JR3030T: 007                                    1                                                1     For JR3030T
                421665-9                                   421760-5

Note
1) Interchangeability mark ;       means that the new part is substituted for the current.
2) We will stop supplying the current parts for replacement when they run out of our stock.
Implementation
JR3030 : From your next order received by us in/after Aug., 2000
JR3030T : From serial No.8811E (June, 2000)
