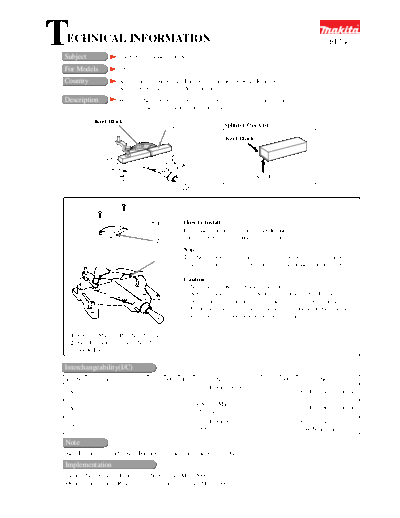

Image preview - the first page of the document
61240-WW-1


>> Download 61240-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject               Introduction of Kerf Block
                                                                                                             61240


For Models            LS1013

Country               As a standard equipment : European countries, Algeria, Reunion
                      As an optional accessory : All countries
Description           With this Kerf block, a workpiece can be cut cleanly without splinters
                      on its rear side that contacts with Guide rule.

            Kerf Block
                                         workpiece               Splinter-free Cut

                                                                 Kerf Block




                                                                              Kerf Board




                                     1          How to Install:
                                                Install Kerf block complete on Guide rule
                                                with two + Screws as illustrated to the left.
                                     2
                                                Note:
                                     3          This Kerf block is available for splinter-free cut in the workpiece
                                                up to 35mm in height because the height of the Kerf block is 36mm.

                                                Caution:
                                                1) Never use the Kerf block in bevel cuts.
                                                2) A Kerf block must always be used for cutting at ONE miter angle.
                                                3) When cutting at another miter angle, use another Kerf block.
                                                   Failure to save these three instructions will break the Kerf block
                                                   into chips and cause serious personal injuries.


    1. + Screw M4x12 (Part No.251314-2)
    2. Kerf Block Comp. (Part No.151917-1)
    3. Guide Rule

Interchangeability(I/C)
Item No.       Current part               Q'ty I/C           New part                      Q'ty          Note
                                                     Kerf Block Complete
  A13                                                151917-1                               1     For European countries

                                                     + Screw M4x12
  A14                                                                                       2     For European countries
                                                     251314-2
                                                     Kerf Block Set                               For all countries
    F05                                                                                     1
                                                     193051-1                                     (See Note below.)

Note
Kerf Block Set includes Kerf Block Complete (1pc.) and + Screw M4x12 (2pcs.).
Implementation
Standard equipment : From serial No.87111E (May, 2000)
Optional accessory : Ready to receive your order since May, 2000
