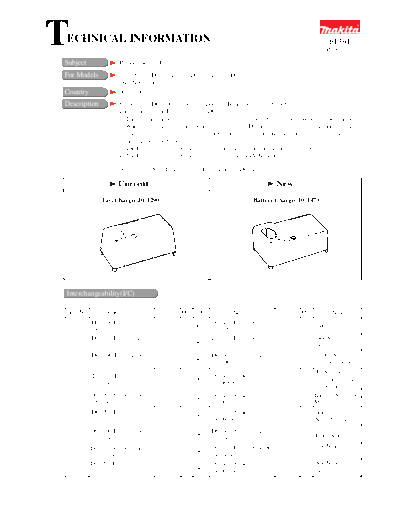

Image preview - the first page of the document
61391-WW-1


>> Download 61391-WW-1 documenatation <<

Text preview - extract from the document
T
ECHNICAL INFORMATION                                                                                       61391
                                                                                                         (Page 1 of 2)

Subject              Replacement of Fast Charger

For Models           6223D, 6211D, 6212D, 6311D, 6312D, 6911D
                     (See Note 1 on page 2.)
Country              All countries

Description          Fast Charger DC1290 has been replaced by Battery Charger DC1470.
                     The features of the Battery Charger DC1470 are as follows;
                     1) The charging time is always constant even if the input voltage (power source voltage) fluctuates.
                     2) When a full-charged battery is left on the charger DC1470, the charger starts "trickle charging"
                        (charging with very little amp.) to supplement battery fuel, keeping the battery always in
                        full-charged condition.
                     3) The Battery Charger DC1470 can be stored in the current Plastic Carrying Case.
                     4) The Battery Charger DC1470 can charge 7.2V-14.4V Batteries.

                     Also refer to New Tool Technical Information of DC1470.

                     Current                                                         New
               Fast Charger DC1290                                          Battery Charger DC1470




Interchangeability(I/C)

Item No.         Current part                 Q'ty I/C             New part                    Q'ty         Note
           DC1290 Fast Charger                            DC1470 Battery Charger
                                                1                                                1    Guam, Panama
           192725-1                                       193095-1
           DC1290 Fast Charger                            DC1470 Battery Charger                      See Note 2
                                                1                                                1
           192717-0                                       193087-0                                    on page 2
           DC1290 Fast Charger                             DC1470 Battery Charger                     Saudi Arabia
                                                1                                                1    (220V), Turkey
           192717-0                                        193096-9
                                                                                                   U. K., (240V),
           DC1290 Fast Charger                            DC1470 Battery Charger
                                                1                                                1 Commonwealth
           192718-8                                       193088-8
                                                                                                   of Dominica
           DC1290 Fast Charger                            DC1470 Battery Charger                   Kuwait, Singapore,
                                                1                                                1
           192718-8                                       193097-7                                 Malaysia
           DC1290 Fast Charger                            DC1470 Battery Charger                      Australia,
                                                1                                                1
           192802-9                                       193089-6                                    New Zealand
           DC1290 Fast Charger                            DC1470 Battery Charger
           192720-1                             1                                                1    Hong Kong
                                                          193097-7
           DC1290 Fast Charger                            DC1470 Battery Charger                      See Note 3
                                                1                                                1    on page 2
           192721-9                                       193087-0
           DC1290 Fast Charger                            DC1470 Battery Charger                      See Note 4
           192721-9                             1         193096-9                               1    on page 2
                                                                                                             61391
                                                                                                        (Page 2 of 2)


Item No.        Current part                  Q'ty I/C            New part                    Q'ty        Note
           DC1290 Fast Charger                            DC1470 Battery Charger
                                                1                                              1     Korea
           192722-7                                       193091-9
           DC1290 Fast Charger                            DC1470 Battery Charger
                                                1                                              1     China
           192723-5                                       193090-1
           DC1290 Fast Charger                            DC1470 Battery Charger                     Saudi Arabia
                                                1                                              1
           192725-1                                       193092-7                                   (127V)
Interchangeability mark ;
The arrow      means that the new part is substituted for the current.

Note
Note 1: DC1470 is designed to charge 1.3Ah/7.2V-14.4V Nickel-Cadmium batteries.
        Therefore, the replacement of Fast Charger is not applied to "DWB" model.
Note 2: Austria, France, Germany, Italy, Netherlands, Russia, Spain, Sweden, Switzerland,
        Algeria, Canary Islands, Congo, Gabon, Morocco, Reunion, South Africa
Note 3: Bolivia, Brazil (220V), Chile, Paraguay, Peru, Bhutan, Syria, New Caledonia, Tahiti
Note 4: Indonesia, Thailand, Philippines, Viet Nam

Implementation
To be informed later
