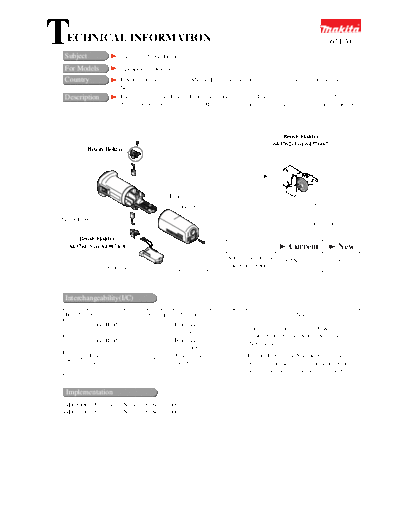

Image preview - the first page of the document
62170-WW-1


>> Download 62170-WW-1 documenatation <<

Text preview - extract from the document
T ECHNICAL INFORMATION
 Subject             Change of Brush Holders
                                                                                                           62170


 For Models          GD0800C, GD0810C
 Country             U.S.A., European countries, Middle-East countries, African countries, Asian countries, Australia,
                     New Zealand
 Description         For standardization, Brush Holders have been changed. The shape remains unchanged. The only
                     difference between the new Brush Holders and the current ones is the spring pressure of the spiral
                     spring.



 Tapping Screw PT3x10                                                                   Brush Holder
                                                                                    (643762-3 or 643760-7)
           Brush Holder




                                 Carbon Brush
                                               Rear Cover

Motor Housing
                                                                                                  Spiral Spring

      Brush Holder
  (643761-5 or 643974-8)                                                                   Current            New
                                                                 Spring pressure of       6.5N/cm 2        4.3N/cm2
                 Controller                                      the Spiral Springs
                                        Tapping Screw 4x18



 Interchangeability(I/C)

 Item No. Current part          Q'ty I/C     New part               Q'ty                      Note
          Brush Holder                    Brush Holder
    040                           1   Yes                            1     European countries (except U.K. 110V),
          643762-3                        643760-7
                                                                           South Africa, China, Korea, Australia,
          Brush Holder                    Brush Holder
   055                            1   Yes                            1     New Zealand,
          643761-5                        643974-8
          Brush Holder                    Brush Holder                     U.S.A., U.K. 110V, Middle-East countries,
 040, 055                         2   Yes                            2
          643762-3                        643760-7                         African countries (except for South Africa),
                                                                           Asian countries(except for China and Korea),


 Implementation
 GD0800C : From serial No.4231E (Sep., 2000)
 GD0810C : From serial No.3488E (Sep., 2000)
