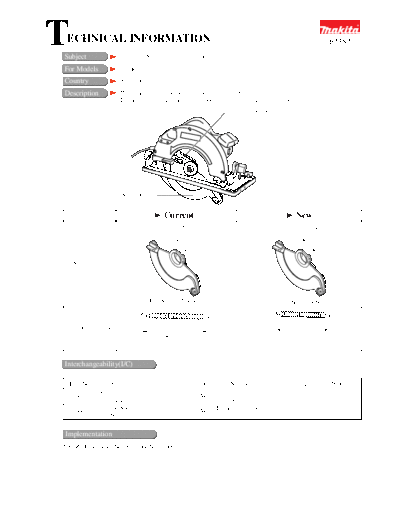

62382-WW-1


>> Download 62382-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject               Change of Safety Cover and Tension Spring 4
                                                                                                          62382


For Models            5703R
Country               All countries

Description           The subject parts have been changed for standardization.
                      The new parts are identical with those of 185mm Circular Saw 5705R.
                                                                 Tension Spring 4




                       Safety Cover


                                        Current                                             New
                                              65.0mm                                          71.0mm




    Safety Cover




                                  (Part No. 316574-4)                               (Part No. 317439-3)



  Tension Spring 4
                                        86.9mm                                           69.2mm
                                      (231797-2)                                        (231827-9)


Interchangeability(I/C)

  Item No.         Current part                Q'ty I/C            New part                  Q'ty         Note
              Safety Cover                         1    Yes   Safety Cover                     1
    003
              316574-4                                        317439-3
              Tension Spring 4                     1    Yes   Tension Spring 4                 1
    004
              231797-2                                        231827-9


Implementation
5703R : From serial No.187137G (Nov.,2000)
