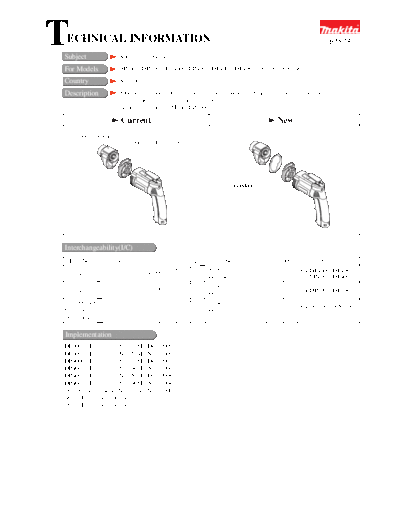

Image preview - the first page of the document
62523-WW-1


>> Download 62523-WW-1 documenatation <<

Text preview - extract from the document
T
ECHNICAL INFORMATION
Subject              Addition of a Gasket
                                                                                                        62523


For Models           DP3002, DP3003, DP4000, DP4001, DP4002, DP4003, JS1300, 6826, 6827

Country              All countries

Description          A Gasket has been added between the gear housing and the gear housing cover for further
                     improvement in grease sealing construction.
                     ( Illustrated below is Model DP4000. )

                     Current                                                       New
      Gear housing
                           Gear housing cover




                                                                  Gasket




Interchangeability(I/C)
 Item No.        Current part               Q'ty I/C          New part                Q'ty           Note
                                                       Gasket                                For DP4000, DP4001
    049                                                                                1
                                                       442134-7                                  DP4002, DP4003
                                                       Gasket
    045                                                                                1     For DP3002, DP3003
                                                       442135-5
JS1300; 049                                            Gasket
                                                       442136-3                        1     For JS1300, 6826, 6827
6826; 049
6827; 064

Implementation
DP3002 : From serial No.1348E (Dec.,2000)
DP3003 : From serial No.1574E (Nov.,2000)
DP4000 : From serial No.3538E (Dec.,2000)
DP4001 : From serial No.1804E (Nov.,2000)
DP4002 : From serial No.3541E (Dec.,2000)
DP4003 : From serial No.1905E (Nov.,2000)
JS1300 : From serial No.2335E (Nov.,2000)
6826 : From initial production
6827 : From initial production
