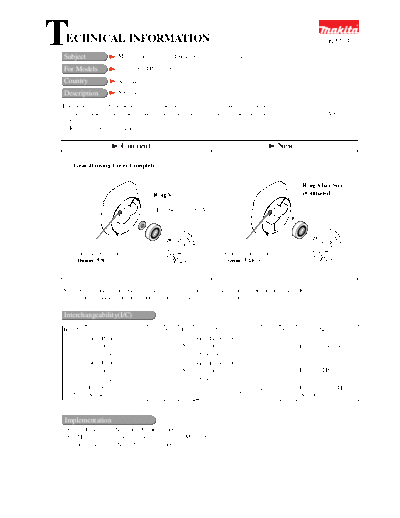

62713-WW-1


>> Download 62713-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject               Modification of Gear Housing Cover Complete, etc.
                                                                                                          62713


For Models            6823, 6823TP, JS1300

Country               All countries
Description           See below.

For more improved grease sealing construction, the following has been implemented.
1. The diameter of the center through-hole of Gear housing cover complete has been changed from 16 mm (5/8") to
   8 mm (5/16").
2. Ring 8 has been eliminated.

                          Current                                                   New

     Gear Housing Cover Complete


                                                                                              Ring 8 has been
                                      Ring 8                                                  eliminated.

                                      Ball Bearing 608VV




    center through-hole                                       center through-hole
    = 16mm (5/8")                                             = 8mm (5/16")



Note: Always use the new Gear housing cover complete for replacement, and be sure to remove Ring 8
      when replacing the current Gear housing cover complete by the new one.

Interchangeability(I/C)
Item No.        Current part              Q'ty I/C          New part                  Q'ty           Note
           Gear Housing Cover                        Gear Housing Cover
    022    Complete                        1   No    Complete                          1     For 6823, JS1300
           151721-8                                  152910-8
           Gear Housing Cover                        Gear Housing Cover
    022    Complete                        1   No    Complete                          1     For 6823TP
           151723-4                                  152911-6
           Ring 8                                                                            For 6823, 6823TP,
    046                                    1
           262087-2                                                                          JS1300



Implementation
6823 : From serial No. 16078E (Dec., 2000)
6823TP: From your order received by us in/after Mar., 2001
JS1300 : From serial No. 2751E (Dec., 2000)
