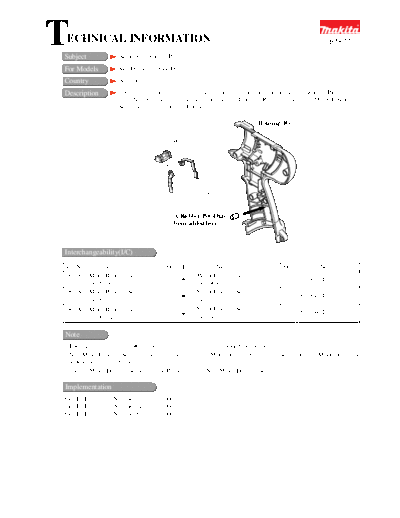

Image preview - the first page of the document
62877-WW-1


>> Download 62877-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject               Addition of Rubber Pin 4
                                                                                                           62877


For Models            8413D, 8433D, 8443D

Country               All countries

Description           For tighter contacts of battery terminals with spring terminals in housings, a Rubber Pin 4
                      (Part. No. 263024-9) has been added to each of Housings (R) and (L). The new Motor Housing
                      Set comes with a couple of Rubber Pins.

                                                                              Housing (R)


                                            Holder




                                               Spring Terminals


                                               A Rubber Pin 4 has
                                               been added here.



Interchangeability(I/C)
Item No.       Current part              Q'ty I/C            New part                   Q'ty           Note
  001 &    Motor Housing Set                          Motor Housing Set
                                           1                                              1    For 8413D
  020      183201-6                                   183206-6
  001 &    Motor Housing Set                          Motor Housing Set
                                           1                                              1    For 8433D
  020      183203-2                                   183207-4
 001 &     Motor Housing Set                          Motor Housing Set                        For 8443D
                                           1                                              1
 020       183202-4                                   183208-2

Note
1. Interchangeability mark ;     means that the new part is substituted for the current.
2. New Motor Housing Set for replacement does not have a Makita logo engraved in its side, so it has a Makita logo label
   adhered to its side instead.
3. Current Motor Housing Set accepts the Pin 4 as well as New Motor Housing Set.

Implementation
8413D: From serial No. 19423E (Dec., 2000)
8433D: From serial No. 24635E (Dec., 2000)
8443D: From serial No. 35676E (Dec., 2000)
