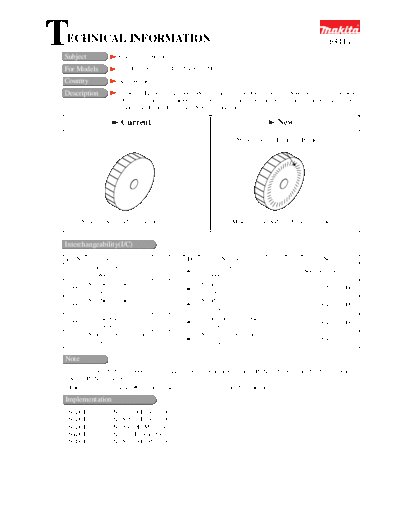

63414-WW-1


>> Download 63414-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject                 Change of Spur Gear 93
                                                                                                            63414


For Models              6791D, 6792D, 6793D, 6794D, 6795D

Country                 All countries
Description             Induction Hardening has been added in the manufacturing process of Spur Gear 93 to increase its
                         durability. The new Spur Gear can be distinguished from the current one by checking the marks
                        made by Induction Hardening. See the illustration below.

                         Current                                                      New
                                                                      Marks made by Induction Hardening




          Material: Steel S45C not induction-hardened               Material: Steel S45C induction-hardened


Interchangeability(I/C)
Item No.         Current part               Q'ty I/C            New part                   Q'ty          Note
            Spur Gear 93                                Spur Gear 93
                                              1                                             1     See note 1 below.
            221988-3                                    221988-3
            Spindle Complete                            Spindle Complete
    006                                       1                                             1     For 6791D, 6793D
            153186-0                                    153186-0
            Spindle Complete                            Spindle Complete
    006                                       1                                             1     For 6793D, 6794D
            153220-6                                    153220-6
            Spindle A'ssy (with Gear)                   Spindle A'ssy (with Gear)
    006                                       1                                             1     For 6791D, 6792D
            134728-9                                    134728-9
            Spur Gear 93 Complete                       Spur Gear 93 Complete
    027                                       1                                             1     For 6795D
            153250-7                                    153250-7

Note
1. Spur Gear 93 (Pt. No. 221988-3) is a constituent part of Spindle Complete (Pt. No. 153186-0 or 153220-6) or Spindle
   A'ssy (Pt. No. 134728-9).
2. Interchangeability mark ;     means that the new part is substituted for the current.

Implementation
6791D: From serial No.515600E (Apr.,2001)
6792D: From serial No.505114E (Apr.,2001)
6793D: From serial No.20639E (Mar.,2001)
6794D: From serial No.6433E (Apr.,2001)
6795D: From serial No.502028E (May,2001)
