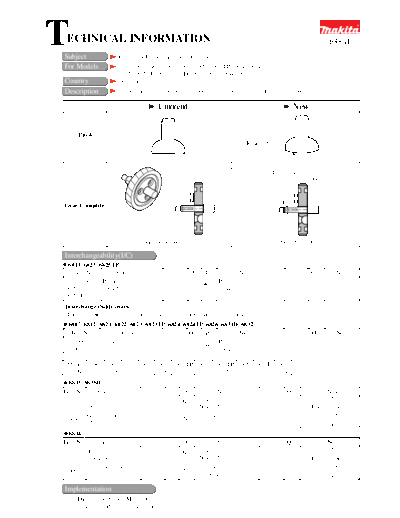

63841-WW-1


>> Download 63841-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject                 Change of Pin 4 and/or Gear Complete
                                                                                                              63841

For Models              6807, 6812, 6813, 6821, 6822, 6823, 6823TP, 6824, 6824TP
                        6825, 6825TP, 6826, 6831D, 6832, 6833, 6834, 6835D
Country                 All countries
Description             Pin 4 and/or gear complete has been changed to improve durability of clutch.

                                       Current                                               New


        Pin 4
                                                                           Rounded



                                                                                     The shape changed.
                                                                                                (stepped)



 Gear Complete




                                  Gear Complete                                          Gear Complete

 Interchangeability(I/C)
 6813, 6825, 6825TP
   Item No.         Current part                    Q'ty I/C            New part                       Q'ty      Note
6813: 018     Pin 4                                   3         Pin 4                                   3
6825: 015     256439-7                                          256467-2
6825TP: 015
 Interchangeability mark ;
  The arrow      means that the new part can be substituted for the current.
  6807, 6812, 6821, 6822, 6823, 6823TP, 6824, 6824TP, 6826, 6831D, 6832
   Item No.          Current part               Q'ty I/C          New part                             Q'ty      Note
      See      Pin 4                             3 Yes Pin 4                                            3
    below      256439-7                                   256467-2

  Model 6807 6812 6821 6822 6823 6823TP 6824 6824TP 6826 6831D 6832
Item No. 020 018 012 017 018       018   015   015   018  033   019
  6833, 6835D
Item No.     Current part                  Q'ty I/C            New part                    Q'ty               Note
   017 Pin 4                                 3   No Pin 4                                    3
         256439-7                                   256467-2                                           Interchangeable
         Gear complete                              Gear complete                                           as a set
  009                                        1   No                                         1
         153275-1                                   152997-0
   6834
Item No.        Current part               Q'ty I/C        New part                        Q'ty               Note
           Pin 4                                 No Pin 4
  017                                        3                                               3
           256439-7                                 256467-2                                           Interchangeable
           Gear complete                            Gear complete                                           as a set
  009                                        1   No                                         1
           152622-3                                 152995-4

Implementation
6832: Discontinued since May, 2001
The remaining models: To be informed later.
