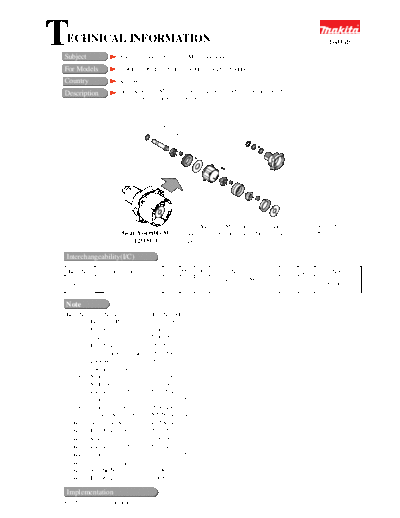

Image preview - the first page of the document
64046-WW-1


>> Download 64046-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject              Addition of Gear Assembly M as a Replacement Part
                                                                                                                                64046


For Models           6796D, 6796FD, 6797D, 6797FD, 6798D, 6798FD
Country              All countries
Description          Gear Assembly M has become available, including Spindle, Gear Case,
                     Clutch portion and Gear portion.



                                     48
                                          46                                                   20
                                                                                                    21 22
                                                45                                                          23
                                                     44
                                                          43                                                      25
                                                            42
                                                                 41
                                                                      40
                                                                           39
                                                                                38
                                                                                     37
                                                                                          36
                                                                                                35
                                                                                                      34
                                                                                                             33
                                                                                                                   32




                                                Gear Assembly M includes the constituent parts as illustrated above.
                       Gear Assembly M          See note below for the item Nos., the names, the part Nos. and the
                          (125151-9)            quantities.

Interchangeability(I/C)
 Item No.        Current part                  Q'ty I/C                 New part                                        Q'ty     Note
                                                                 Gear Assembly M
    B01                                                                                                                  1     See below.
                                                                 125151-9

Note
Item No.       Name             Part No. Quantity
   020   Retaining Ring S-12   961072-9    1
   021   Flat Washer 12        253052-2    1
   022   Steel Ball 3          216019-1 16
   023   Flat Washer 12        253052-2    1
   025   Gear Case Complete    152835-6    1
   032   Lock Washer           267738-2    1
   033   Internal Gear 49      226352-3    1
   034   Spur gear 17          226351-6    3
   035   Spur Gear 15 Complete 152833-0    1
   036   Internal Gear 35      227015-4    1
   037   Spur Gear 10          226311-7    5
   038   Spur Gear 15 Complete 152834-8     1
   039 Tapping Screw 3X12 265893-4         4
   040   Gear Case A           416588-4     1
   041   Flat Washer 18        267225-1    1
   042   Steel Ball 3          216019-1 38
   043   Internal Gear 35      227014-6     1
   044   Spur Gear 10          226311-7    5
   045   Carrier Complete      152526-9    1
   046   Spindle N             324082-1    1
   048   Flat Washer 12        253052-2    1

 Implementation
Ready to receive your orders
