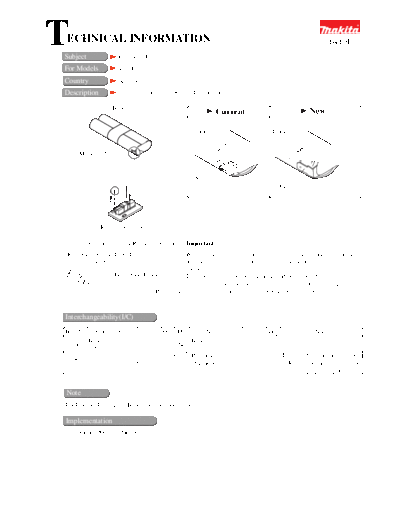

Image preview - the first page of the document
64101-WW-1


>> Download 64101-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject                Change of Battery
                                                                                                            64101

For Models             4072D
Country                All countries
Description            Battery has been changed as illustrated below.

                    Battery
                                                                Current                            New

                                                      Thickness                    Thickness


      Minus (-) Terminal


                                                       A dent
                                                                                        Flat




               Resistance Circuit

    The constituent parts of Resistance Circuit     Important;
 Receptacle ST0-41T-187T                       When replacing battery to new type, the receptacle must be too loose to
        (654108-8)                             be connected with the minus (-) terminal of the new battery, which is
                                               thinner than that of the old battery.
                     Lead Wire (Black)         Therefore, 1) the loose receptacle should be tightened by a pair of
                                         To                  pliers before connecting it with minus (-) terminal
                                    Resistance            2) or the loose receptacle should be replaced by fresh one.
                                       Circuit

Interchangeability(I/C)
Item No.      Current part               Q'ty I/C          New part              Q'ty                Note
           Battery                                   Battery
    030                                    1      No                              1
           678132-7                                  678135-1
                                                     Receptacle                         To be used in case the receptacle
    D01                                                                           1     of Resistance Circuit can not be
                                                     654108-8
                                                                                        repaired by a pair of pliers.


 Note
The Plus (+) Terminal of Battery remains unchanged.

 Implementation
Since August 2001' production
