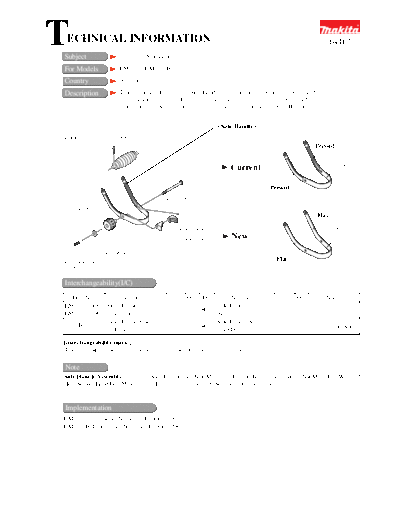

Image preview - the first page of the document
64467-WW-1


>> Download 64467-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject                 Change of Side Handle
                                                                                                             64467


For Models              HM1303, HM1303B

Country                 All countries

Description             To increase the durability of Side Handle, the following have been implemented.
                        1) The thickness of Side Handle has been changed from 3.2 mm (1/8") to 4.5 mm (3/16").
                        2) Pressing has been eliminated from manufacturing process of Side Handle.



Split Pin 3.0-20        Grip 38
                                                                                                     Pressed

                                                                                                              3.2 mm
                                                                   Current                                     (1/8")


                                                                                  Pressed
                                         Set Bolt M10x113
Wing Nut M10
                                                                                                      Flat

                                                Handle Base                                                    4.5 mm
                                                                   New                                         (3/16")
                                                Handle Base

                   Flat Washer 5
Hex. Socket Head                                                                     Flat
Bolt M5x16

 Interchangeability(I/C)
  Item No.        Current part                     Q'ty I/C        New part                  Q'ty        Note
HM1303: 065 Side Handle                              1
                                                              Side Handle
                                                                                              1
HM1303B: 067 344390-4                                         345233-3
             Side Handle Assembly                             Side Handle Assembly            1
     B01                                             1                                              See the note below.
             134924-9                                         134949-3

Interchangeability mark ;
 The arrow      means that the new part can be substituted for the current.

 Note
Side Handle Assembly consists of Side Handle, Set Bolt M10x113, Handle Base (2 pcs.), Wing Nut M10, Flat Washer 5,
Hex. Socket Head Bolt M5x16, Split Pin 3.0-20 and Grip 38. See the illustrations above.


 Implementation
HM1303: From serial No. 46027E (Aug., 2001)
HM1303B: From serial No. 11402E (Aug., 2001)
