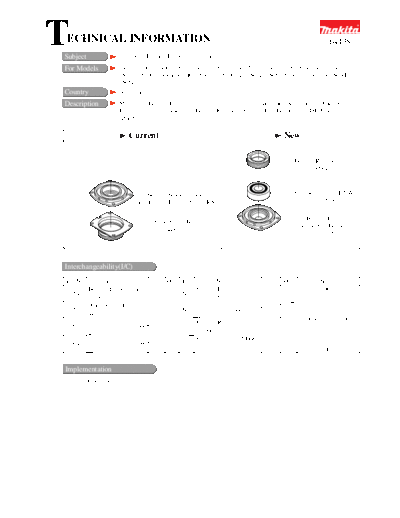

Image preview - the first page of the document
64438-WW-1


>> Download 64438-WW-1 documenatation <<

Text preview - extract from the document
TECHNICAL INFORMATION
Subject                Change of Bearing Box Complete, etc.
                                                                                                          64438

For Models             9560, 9560C, 9560CV, 9561, 9561C, 9561CV, 9561Z, 9562, 9562C, 9562CV, 9562Z, 9563,
                       9563C, 9563CV, 9564, 9564C, 9564CV, 9564CVL, 9564Z, 9565, 9565C, 9565CV, 9565CVL,
                       9565Z
Country                All countries
Description            Material of Bearing Box has been changed from resin to aluminum. Accordingly, Wheel Cover
                       Base has been eliminated, and Bearing Retainer 19-33 and Ball Bearing 6201DDW have been
                       added.

                          Current                                                    New

                                                                                            Bearing Retainer 19-33
                                                                                                  (285841-7)



                                  Bearing Box Complete                                      Ball Bearing 6201DDW
                            [includes Ball Bearing 6201-2RS.]                                     (211129-9)
                                       (151927-8)
                                                                                                 Bearing Box
                                       Wheel Cover Base
                                                                                            [without Ball Bearing]
                                         (344872-6)
                                                                                                 (317570-5)




Interchangeability(I/C)
Item No.        Current part                Q'ty I/C          New part               Q'ty             Note
           Bearing Box Complete                        Bearing Box
    054                                      1   No                                   1
           151927-8                                    317570-5
           Wheel Cover Base
    053                                      1   No                                            The new parts are
           344872-6
                                                                                               substituted for the
                                                       Bearing Retainer 19-33
    063                                                                               1       current parts as a set.
                                                       285841-7
                                                       Ball Bearing 6201DDW
    064                                                                               1
                                                       211129-9


Implementation
To be informed later
