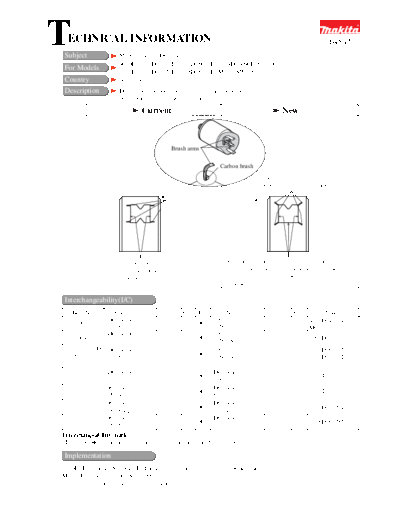

64542-WW-1


>> Download 64542-WW-1 documenatation <<

Text preview - extract from the document
T ECHNICAL INFORMATION
Subject               Modification of DC motor
                                                                                                             64542

                      4070D, 4071D, 6016D, 6017D, 6018D, 6019D, 6096D, 6223D,
For Models
                      6226D, 6227D, 6327D, 6228D, 6328D, M010, MEU003
Country               All countries
Description           DC motor have been modified for further increase of durability
                      on its brush arm as illustrated below.

                               Current              Country
                                                                                       New
                                                        Description


                                           Brush arms

                                                               Carbon brush
                                                                              Holes at tip of the slit
                                                                              for prevention against crack

                                          Slits




                       Carbon brush is                            Carbon brush is held with these 3 portions.
                       held with these                            The temperature rise can be lessened by widening
                       2 portions.                                the connecting area of brush arms with carbon
                                                                  brushes.

Interchangeability(I/C)
    Item No.       Current part                Q'ty I/C          New part                   Q'ty        Note
                 DC motor                       1            DC motor                        1     4070D, 4071D,
       005
                 629691-4                                   629776-6                               M010
                 DC motor                                    DC motor
      004        629726-1                       1           629778-2                         1     6096D
 6016D, 6017D, DC motor                                      DC motor                              6016D, 6017D,
 6018D: 010                                     1                                            1
                 629708-3                                   629779-0                               6018D, 6019D
 6019D: 011
                 DC motor                       1           DC motor                         1
      036                                                                                          6223D
                 629720-3                                   629781-3
                DC motor                                    DC motor
      016                                       1                                             1    6226D
                629748-1                                    629785-5
                DC motor                                    DC motor
      016                                       1                                             1    6227D, 6327D
                629750-4                                    629787-1
                DC motor                                    DC motor
      016                                       1                                             1    6228D, 6328D
                629752-0                                    629789-7
Interchangeability mark ;
 The arrow      means that the new part can be substituted for the current.

Implementation
4070D: From serial No.58438E (The implementation date will be informed later.)
M010: Discontinued since Aug.,1992
The remaining models: To be informed later
