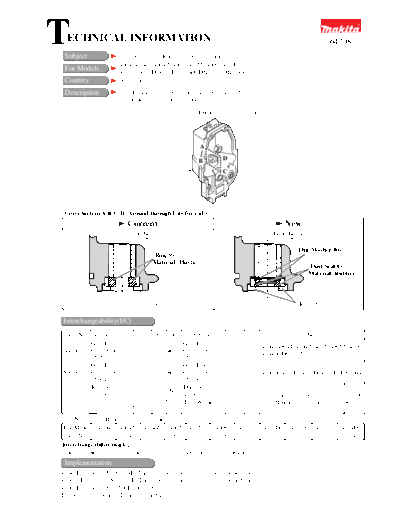

T ECHNICAL INFORMATION
 Subject              Change of Gear Housing Cover Complete
                                                                                                          64798

                      4304, 4304T, 4304Z, 4305, 4305T, 4306, 4330D,
 For Models           4331D, 4332D, 4333D, 4334D, DK1032, DK1044
 Country              All countries
 Description          Gear Housing Cover Complete has been changed
                      for further improvement of dust-proof performance,

                                                Gear Housing Cover Complete




                                                        A

                                                        B       D

                                                                C




 Cross Section A-B-C-D (Around through hole for rod )
                          Current                                                        New
                         (Plane Bearing 10)                                         (Plane Bearing 10)

                                                                                             (Thin Washer 10)
                                    (Ring 9)
                                    Material: Plastic
                                                                                                   (Dust Seal 8)
                                                                                                   Material: Rubber



                                    (Ring 16)                                                 (Ring 16)

 Interchangeability(I/C)
 Item No.   Current part            Q'ty I/C       New part              Q'ty                      Note
           Gear Housing                         Gear Housing
                                                                                 4304, 4304T, 4304Z, 4305, 4305T, 4306,
See below. Cover Complete             1         Cover Complete             1
                                                                                 4334D, DK1032
           151596-5                             153389-6
           Gear Housing                         Gear Housing
See below. Cover Complete             1         Cover Complete             1     4330D, 4331D, 4332D, 4333D, DK1044
           152645-1                             153391-9
           Ring 9                               Dust Seal 8
                                      1   No                               1
           262082-2                             421821-1                         Constituent parts of  Interchangeable
                                                Thin Washer 10                   Gear Housing Complete      as a set
                                                                           1
                                                253310-6
Item No. of Gear Housing Cover Complete
 For Model 4304       4304T 4304Z          4305 4305T         4306      4330D    4331D     4332D     4333D      4334D
  Item No.    017      034        016      003      017        018       011       011      011       011        034
Interchangeability mark ;
 The arrow       means that the new part can be substituted for the current.
 Implementation
4304: From serial No.80824E (The implementation date will be informed later. )
4304Z: From serial No.1876E (The implementation date will be informed later. )
4306: From serial No.9560E (Oct.,2001)
The remaining models: To be informed later.
